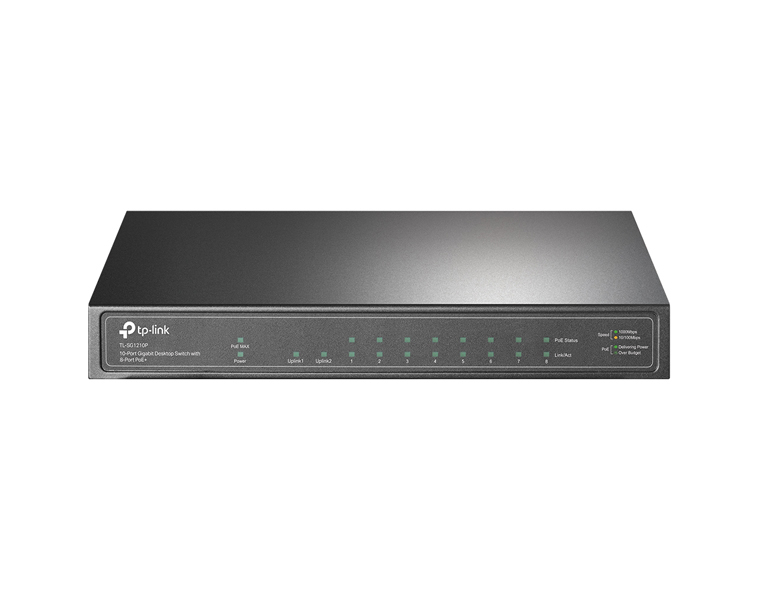

10-PORT GIGABIT DESKTOP POE+SWITCH 63W

HARDWARE FEATURES

– Standards IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3af,
802.3at, 802.3z, 802.1p
– Network Ports 8 PoE+ 10/100/1000 Mbps RJ45 Ports
1 10/100/1000 Mbps RJ45 Port
1 Gigabit SFP Slot
– Network Media 10Base-T:
UTP category 3, 4, 5 cable maximum 100 m
EIA/TIA-568 100 Ω STP maximum 100 m
100Base-TX:
UTP category 5, 5e or above cable maximum 100 m
EIA/TIA-568 100 Ω STP maximum 100 m
1000Base-T:
UTP category 5,5e, 6 or above cablemaximum 100 m
EIA/TIA-568 100 Ω STP maximum 100 m
1000BASE-X MMF, SMF
PoE+ PortsRJ45 PoE Standard: 802.3af/at
PoE Ports 1-8, up to 30 W per port
PoE Power Budget 63 W*
– Auto Negotiation YES
– Auto MDI/MDIX YES
– Backup Bandwidth 20 Gbps
– Packet Forwarding Rate 14.88 Mpps
– Max Power Consumption 7.11 W 220/50 Hz. no PD connected
78.13 W 220/50 Hz. with 63 W PD connected
– Max Heat Dissipation 24.25 BTU/h no PD connected
266.42 BTU/h with 63 W PD connected
– Switch Capacity 20 Gbps
– MAC Address Table 4K, Auto-learning, Auto-aging
– Flow Control YES
– Fanless YES
– LED Power, Link/Act, PoE Status, PoE MAX

SOFTWARE FEATURES
– Advanced Features Compatible With IEEE 802.3af/at Compliant PDs
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
– Transmission Method Store-And-Forward
– Dimensions 209 x 126 x 26 mm

OTHERS
– Certification CE, FCC
– Environment Operating Temperature: 0°C to 40 °C
Storage Temperature: -40 °C to 70 °C
Operating Humidity: 10 to 90 non-condensing
Storage Humidity: 5 to 90 non-condensing
– Package Contents TL-SG1210P, Power Adapter, Installation Guide
