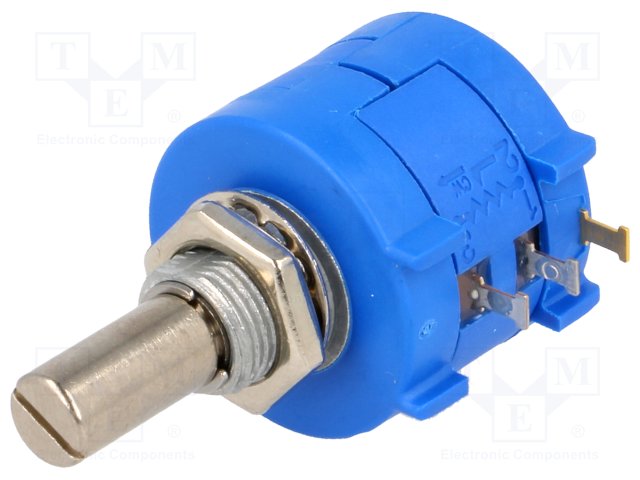

10kΩ 2W Potentiometer linear multiturn 6.35mm
€36,00
Out of stock
– Manufacturer: BOURNS
– Type of potentiometer: shaft
– Kind of potentiometer: multiturn
– Resistance : 10kΩ
– Power: 2W
– Tolerance: ±5
– Shaft diameter: 6.35mm
– Characteristics: linear
-Body dimensions: Ø22.22×18.6mm
– Track material: wirewound
– Number of electrical turns: 10
-Shaft length: 12.6mm
– Potentiometer features: precise
– Linearity tolerance: ±0.25
– Operating temperature: -40…125°C
– Shaft surface: smooth
– Min. insulation resistance: 1000MΩ
– Thread length: 8mm
– Shaft material: metal
– Temperature coefficient: 50ppm/°C
– L shaft length: 20.6mm
– IP rating: IP40
Additional information
– Gross weight: 0.02 kg
