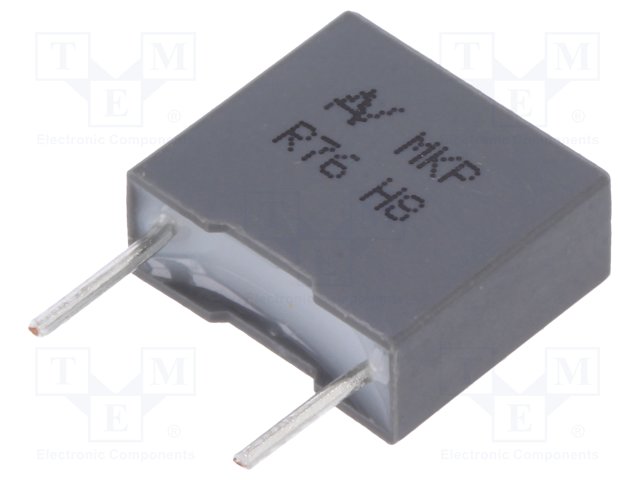

10NF 400V POLYPROPYLENE CAPACITOR X2PCS

Capacitor: polypropylene 10nF 7.5mm ±5 10x4x9mm -55÷105°C

-Manufacturer KEMET
-Type of capacitor polypropylene
-Capacitance 10nF
-Terminal pitch 7.5mm
-Tolerance ±5
-Body dimensions 10 x 4 x 9mm
-Climate class 55/105/56 IEC 60068-1
-Operating temperature -55...105°C
-Enclosure material self-extinguishing, UL94V-0
-Pulse resistance 1700V/μs
-Mounting THT
-Max. operating voltage 400V DC, 250V AC
-Capacitors series R76
-Capacitance - µF 0.01µF
-Lead length 4mm
-Conform to the norm AEC-Q200

Additional information
-Gross weight: 1.02 g
