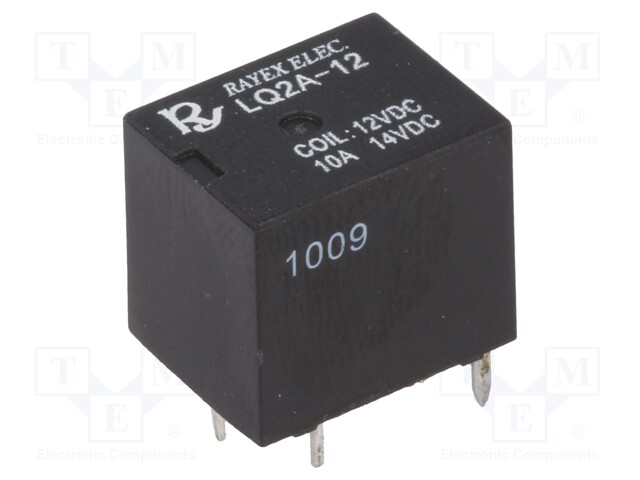

12VDC 10A ELECTROMAGNETIC RELAY
€2,45
In stock
– Manufacturer: Recoy/RAYEX ELECTRONICS
– Type of relay: electromagnetic
– Contacts configuration: SPST-NO DM
– Rated coil voltage: 12V DC
– Contact current max:. 10A
– DC contacts rating @R: 10A / 14V DC
– Relay variant: automotive
– Coil resistance: 180Ω
– Operating temperature: -30…85°C
– Body dimensions: 16×12.5x14mm
– Mounting: PCB
– Relay series: LQ
– Contact resistance: 100mΩ
– Leads: for PCB
– Mechanical durability: 10000000 cycles
– Weight: 6g
– Coil current: 66.7mA
– Operate time: 7.2ms
– Release time: 1.2ms
– Electrical life: 100000 cycles
Additional information
– Gross weight: 5.28 g
- Manufacturer: Recoy/RAYEX ELECTRONICS
- Type of relay: electromagnetic
- Contacts configuration: SPST-NO DM
- Rated coil voltage: 12V DC
- Contact current max:. 10A
- DC contacts rating @R: 10A / 14V DC
- Relay variant: automotive
- Coil resistance: 180Ω
- Operating temperature: -30...85°C
- Body dimensions: 16x12.5x14mm
- Mounting: PCB
- Relay series: LQ
- Contact resistance: 100mΩ
- Leads: for PCB
- Mechanical durability: 10000000 cycles
- Weight: 6g
- Coil current: 66.7mA
- Operate time: 7.2ms
- Release time: 1.2ms
- Electrical life: 100000 cycles
Additional information
- Gross weight: 5.28 g
