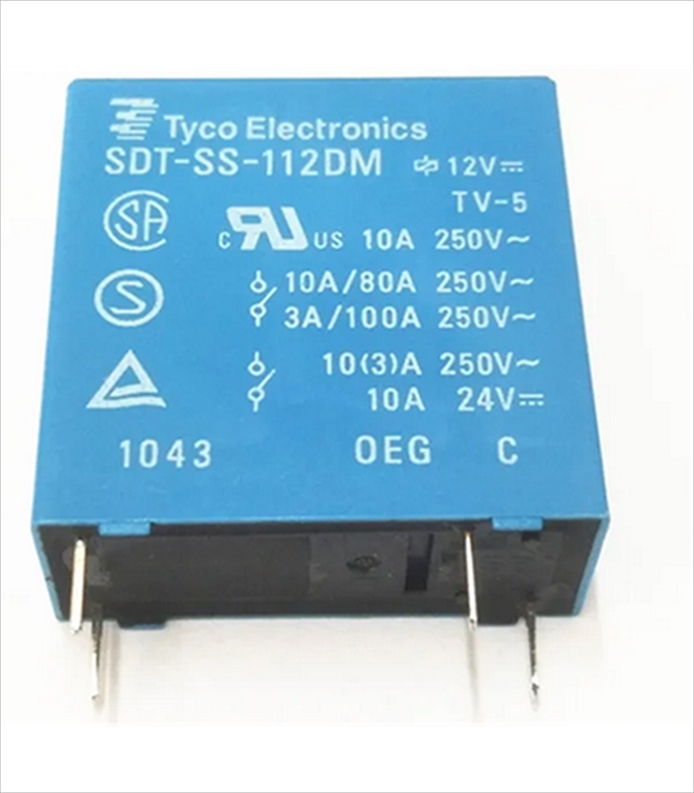

12VDC 10A RELAY ELECTR. 4 PIN
€7,00
In stock
– Manufacturer: TE Connectivity
– Type of relay: electromagnetic
– Contacts configuration: SPST-NO
– Rated coil voltage: 12V DC
– Contact current max.: 10A
– AC contacts rating @R
at resistive load: 10A / 250V AC
– Manufacturer series: SDT-R
– Switched voltage: max. 30V DC, max. 250V AC
– Relay variant: miniature
– Mounting: PCB
– Body dimensions: 24x10x25mm
– Operating temperature: -30…70°C
– Terminal pitch: 3.5mm
- Manufacturer: TE Connectivity
- Type of relay: electromagnetic
- Contacts configuration: SPST-NO
- Rated coil voltage: 12V DC
- Contact current max.: 10A
- AC contacts rating @R
at resistive load: 10A / 250V AC
- Manufacturer series: SDT-R
- Switched voltage: max. 30V DC, max. 250V AC
- Relay variant: miniature
- Mounting: PCB
- Body dimensions: 24x10x25mm
- Operating temperature: -30...70°C
- Terminal pitch: 3.5mm
