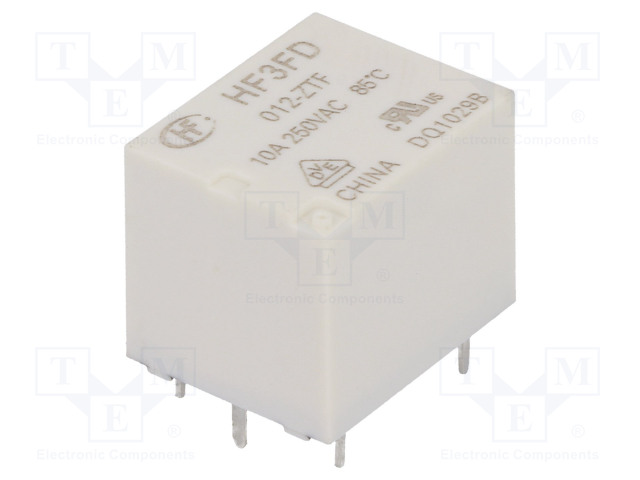

12VDC 10A Relay electromagnetic 5pin
€2,35
Only 2 left in stock
– Manufacturer: HONGFA RELAY
– Type of relay: electromagnetic
– Contacts configuration : SPDT
– Rated coil voltage: 12V DC
– AC contacts rating @R
at resistive load: 10A / 250V AC
– DC contacts rating @R
at resistive load: 10A / 28V DC
– Contact current max.: 10A
– Switched voltage: max. 30V DC, max. 277V AC
– Relay variant: subminiature
– Mounting: PCB
– Coil resistance: 400Ω
– Coil voltage min.: 9V DC
– Coil voltage max.: 15.6V DC
– Operate time: 10ms
– Body dimensions: 19×15.5×15.2mm
– Release time: 5ms
– Coil power consumption: 360mW
– Operating temperature: -40…105°C
– Contact resistance: 100mΩ
– Contact material: AgSnO2
Additional information
– Gross weight: 8.09 g
