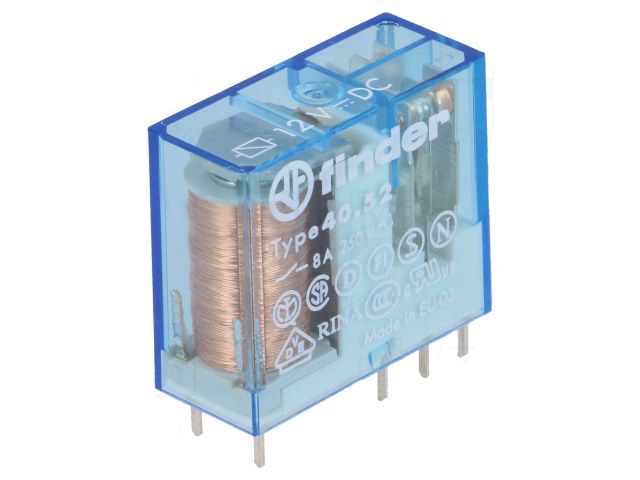

12VDC 8A RELAY ELECTROMAGNETIC
€10,00
Out of stock
– Manufacturer: FINDER
– Type of relay: electromagnetic
– Contacts configuration: DPDT
– Rated coil voltage: 12V DC
– AC contacts rating @R
at resistive load: 8A / 250V AC
– DC contacts rating @R
at resistive load: 8A / 30V DC
– Contact current max.: 15A
– Switched voltage: max. 220V DC, max. 400V AC
– Relay variant: miniature
– Mounting: PCB, socket
– Coil resistance: 220Ω
– Body dimensions: 29×12.4x25mm
– Coil power consumption: 650mW
– Operating temperature: -40…85°C
– Relay series: 40.52
– Contact material: AgNi
– Terminal pitch: 5mm
– Coil current: 55mA
Additional information
– Gross weight: 17.19 g
