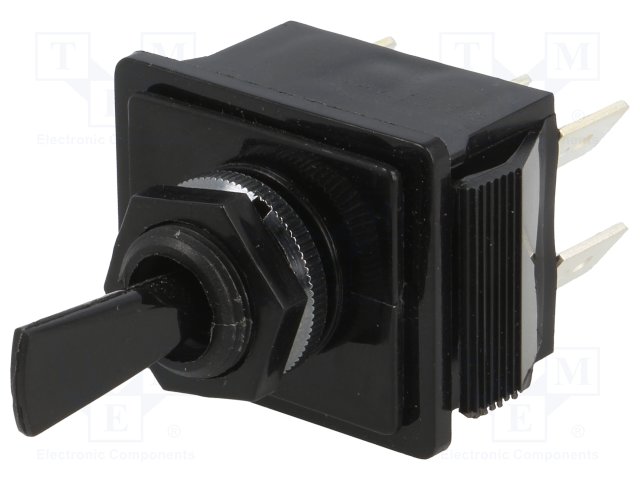

16A 250VAC ON-OFF-ON TOGGLE SWITCH
€4,50
Out of stock
Switch: toggle Positions:3 DP3T ON-OFF-ON 16A/250VAC -25÷70°C
-Manufacturer BULGIN
-Type of switch toggle
-Number of positions 3
-Stable positions number 3-position
-Contacts configuration DP3T
-Switching method
item in brackets is instantaneous ON-OFF-ON
-AC contacts rating @R
at resistance load 16A / 250VAC
-DC contacts rating @R
at resistance load 28A / 28VDC
-Leads 6,3×0,8mm connectors
-Operating temperature -25…70°C
-Kind of toggle flat
-Mounting hole diameter Ø12.7mm
-Knob height 16.4mm
-Actuator material polyamide
-IP rating IP40
-Manufacturer series 1750
Additional information
-Gross weight: 0.02 kg
Switch: toggle Positions:3 DP3T ON-OFF-ON 16A/250VAC -25÷70°C
-Manufacturer BULGIN
-Type of switch toggle
-Number of positions 3
-Stable positions number 3-position
-Contacts configuration DP3T
-Switching method
item in brackets is instantaneous ON-OFF-ON
-AC contacts rating @R
at resistance load 16A / 250VAC
-DC contacts rating @R
at resistance load 28A / 28VDC
-Leads 6,3x0,8mm connectors
-Operating temperature -25...70°C
-Kind of toggle flat
-Mounting hole diameter Ø12.7mm
-Knob height 16.4mm
-Actuator material polyamide
-IP rating IP40
-Manufacturer series 1750
Additional information
-Gross weight: 0.02 kg
