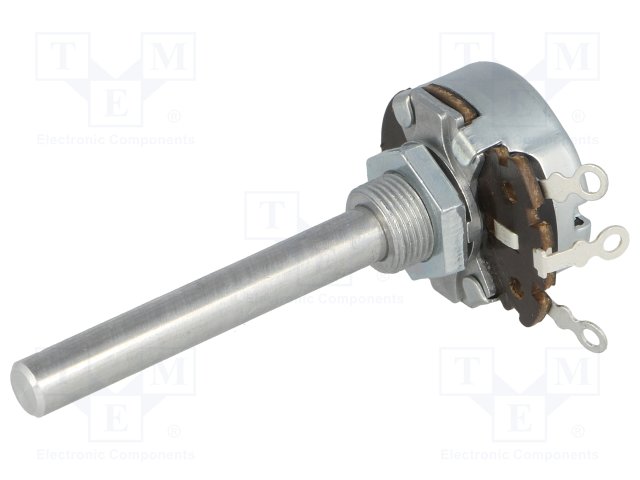

1K 4W POTENTIOMETER 6MM SINGLE TURN

Potentiometer: shaft single turn 1kΩ 4W ±10 6mm wirewound

-Manufacturer TT ELECTRONICS
-Type of potentiometer shaft
-Kind of potentiometer single turn
-Resistance 1kΩ
-Power 4W
-Tolerance ±10
-Shaft diameter 6mm
-Characteristics linear
-Thread length 8mm
-Track material wirewound
-Shaft length 42mm
-Shaft surface smooth
-Fastening thread M10x0,75
-L shaft length 50mm
-Electrical rotation angle 280 ±5°
-Mechanical rotation angle 300 ±10°
-Linearity tolerance ±2
-Max. operating voltage 500V DC

Additional information
-Gross weight: 0.02 kg
