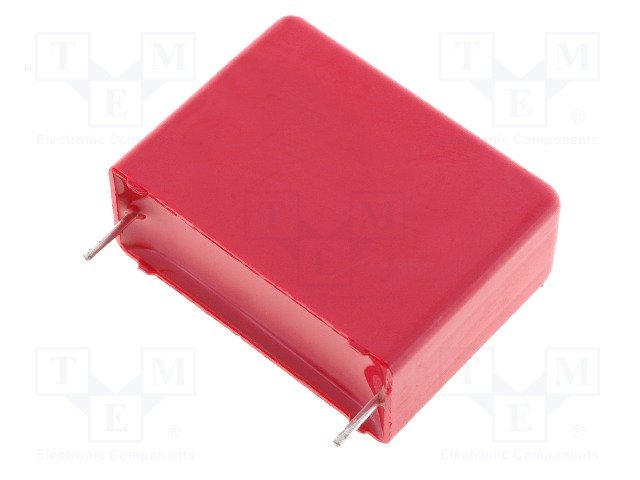

22μF 40VAC 63VDC POLYES.CAPAC.

Capacitor: polyester 22uF 40VAC 63VDC Pitch:27.5mm ±10

-Manufacturer WIMA
-Type of capacitor polyester
-Capacitor application filtering, energy storage, decoupling
-Capacitance 22µF
-Max. operating voltage 63V DC, 40V AC
-Terminal pitch 27.5mm
-Tolerance ±10
-Body dimensions 13 x 24 x 31.5mm
-Operating temperature -55...100°C
-Capacitors series MKT
-Enclosure material self-extinguishing, UL94V-0
-Pulse resistance 2.5V/μs
-Mounting THT
-Capacitors features:
*increased service life capacitors
*low ESR resistance value

Additional information
-Gross weight: 0.01 kg
