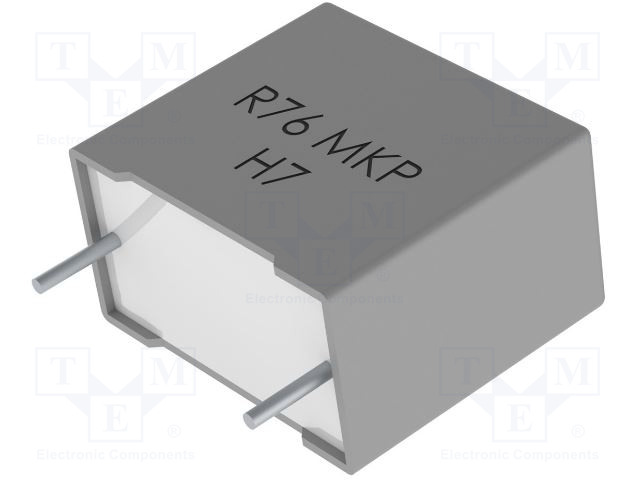

22NF 1600V POLYESTER CAPACITOR X2pcs
€2,00
In stock
– Manufacturer: KEMET
– Type of capacitor: polypropylene
– Capacitance: 22nF
– Terminal pitch: 15mm
– Tolerance: ±5
– Body dimensions: 18×7.5×13.5mm
– Climate class: 55/105/56 IEC 60068-1
– Operating temperature: -55…105°C
– Enclosure material: self-extinguishing, UL94V-0
– Pulse resistance: 6kV/μs
– Mounting: THT
– Capacitors series: R76
– Alias: 76TI22204040J
– Lead length: 30mm
– Capacitance – µF: 0.022µF
– Conform to the norm: AEC-Q200
– Max. operating voltage: 650V AC, 1.6kV DC
Additional information
– Gross weight: 2.567 g
- Manufacturer: KEMET
- Type of capacitor: polypropylene
- Capacitance: 22nF
- Terminal pitch: 15mm
- Tolerance: ±5
- Body dimensions: 18x7.5x13.5mm
- Climate class: 55/105/56 IEC 60068-1
- Operating temperature: -55...105°C
- Enclosure material: self-extinguishing, UL94V-0
- Pulse resistance: 6kV/μs
- Mounting: THT
- Capacitors series: R76
- Alias: 76TI22204040J
- Lead length: 30mm
- Capacitance - µF: 0.022µF
- Conform to the norm: AEC-Q200
- Max. operating voltage: 650V AC, 1.6kV DC
Additional information
- Gross weight: 2.567 g
