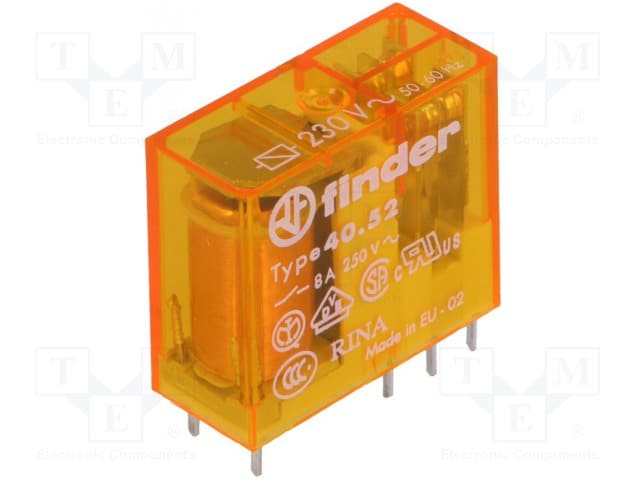

230VAC 8A relay electromagnetic 8pin
€24,00
| Weight | 16,4 g |
|---|---|
| Dimensions | 29 × 12,4 × 25 cm |
Out of stock
– Manufacturer: FINDER
– Type of relay: electromagnetic
– Contacts configuration: DPDT
– Rated coil voltage: 230V AC
– AC contacts rating @R
at resistive load: 8A / 250V AC
– DC contacts rating @R
at resistive load: 8A / 30V DC
– Contact current max.: 15A
– Switched voltage: max. 220V DC, max. 400V AC
– Relay variant: miniature
– Mounting: PCB, socket
– Coil resistance: 28kΩ
– Body dimensions: 29×12.4x25mm
– Coil power consumption: 1.2VA
– Operating temperature: -40…85°C
– Relay series: 40.52
– Contact material: AgNi
– Terminal pitch: 5mm
– Coil current: 5mA
Additional information
– Gross weight: 16.4 g
- Manufacturer: FINDER
- Type of relay: electromagnetic
- Contacts configuration: DPDT
- Rated coil voltage: 230V AC
- AC contacts rating @R
at resistive load: 8A / 250V AC
- DC contacts rating @R
at resistive load: 8A / 30V DC
- Contact current max.: 15A
- Switched voltage: max. 220V DC, max. 400V AC
- Relay variant: miniature
- Mounting: PCB, socket
- Coil resistance: 28kΩ
- Body dimensions: 29x12.4x25mm
- Coil power consumption: 1.2VA
- Operating temperature: -40...85°C
- Relay series: 40.52
- Contact material: AgNi
- Terminal pitch: 5mm
- Coil current: 5mA
Additional information
- Gross weight: 16.4 g
