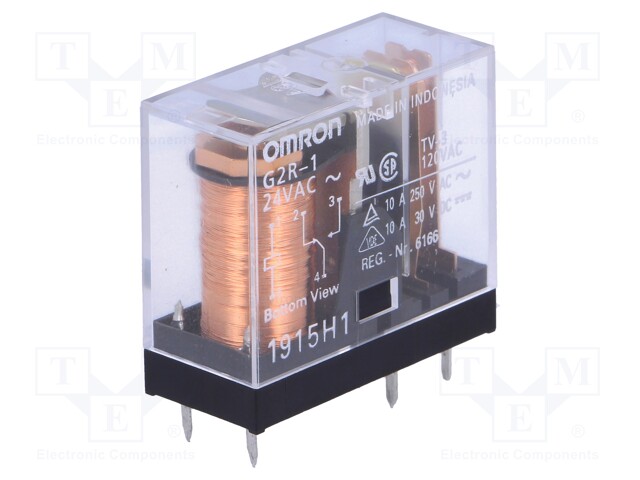

24VAC 10A/250VAC 10A/30VDC ELECTR. RELAY
€10,00
In stock
– Manufacturer: OMRON OCB
– Type of relay: electromagnetic
– Contacts configuration: SPDT
– Rated coil voltage: 24V AC
– AC contacts rating @R: 10A / 250V AC
– DC contacts rating @R: 10A / 30V DC
– Contact current max.: 10A
– Switched voltage: max. 125V DC,
max. 380V AC
– Relay variant: miniature, monostable
– Mounting: PCB
– Coil resistance: 260Ω
– Operate time: 15ms
– Body dimensions: 29x13x25.5mm
– Release time: 10ms
– Operating temperature: -40…70°C
– Relay series: G2R
– Contact resistance: 30mΩ
– Terminal pitch: 3.5mm
– Coil current: 46.5mA
– Related items: PODST-1
– Enclosure description: standard seal
– Leads: for PCB
Additional information
Gross weight: 16.54 g
