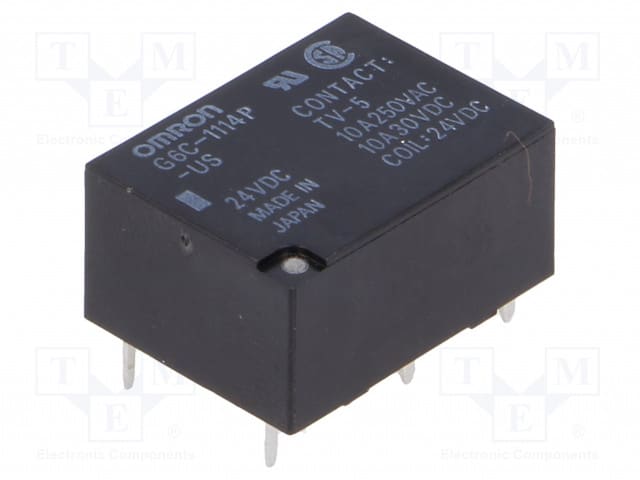

24VDC 10A relay electromagnetic
€9,00
| Weight | 5,7 g |
|---|---|
| Dimensions | 20 × 15 × 10 cm |
In stock
– Manufacturer: OMRON
– Type of relay: electromagnetic
– Contacts configuration : SPST-NO
– Rated coil voltage: 24V DC
– AC contacts rating @R
at resistive load: 10A / 250V AC
– DC contacts rating @R
at resistive load: 10A / 30V DC
– Contact current max.: 10A
– Switched voltage: max. 125V DC, max. 380V AC
– Relay variant: miniature
– Mounting: PCB, socket
– Coil resistance: 2.88kΩ
– Operate time: 10ms
– Body dimensions: 20x15x10mm
– Release time: 10ms
– Operating temperature: -25…70°C
– Relay series: G6C
– Contact resistance: 30mΩ
– Terminal pitch: 7.62mm
– Coil current: 8.3mA
– Enclosure description: hermetic seal
Additional information
– Gross weight: 5.695 g
