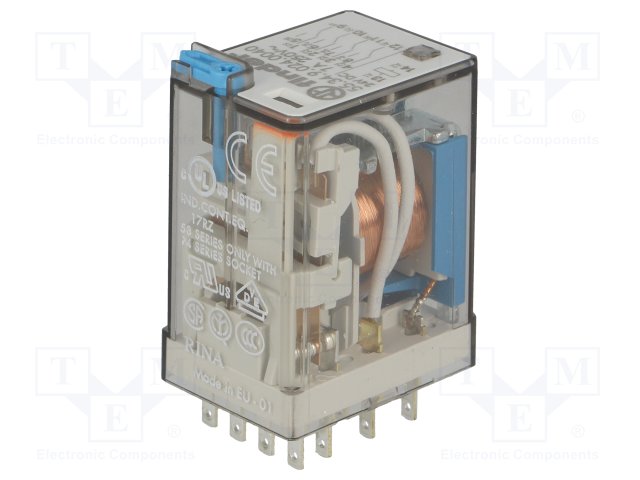

24VDC 7A RELAY ELECTROMAGNETIC 4PDT 7A/250V
€23,00
In stock
– Manufacturer: FINDER
– Type of relay: electromagnetic
– Contacts configuration: 4PDT
– Rated coil voltage: 24V DC
– AC contacts rating @R
at resistance load: 7A / 250VAC
– DC contacts rating @R
at resistance load: 7A / 30VDC
– Contact current max.: 15A
– Switched voltage: max 220V DC, max 250V AC
– Relay variant: industrial
– Mounting: socket
– Relay series: 55.34
– Operating temperature: -40…85°C
– Body dimensions: 27.7 x 20.7 x 35.8mm
– Coil resistance: 600Ω
– Coil current: 40mA
– Contact material: AgNi
– Coil power consumption: 1W
– Leads: 2,8×0,5mm connectors
– Related items: 94.04, 94.14
Additional information
– Gross weight: 0.03 kg
- Manufacturer: FINDER
- Type of relay: electromagnetic
- Contacts configuration: 4PDT
- Rated coil voltage: 24V DC
- AC contacts rating @R
at resistance load: 7A / 250VAC
- DC contacts rating @R
at resistance load: 7A / 30VDC
- Contact current max.: 15A
- Switched voltage: max 220V DC, max 250V AC
- Relay variant: industrial
- Mounting: socket
- Relay series: 55.34
- Operating temperature: -40...85°C
- Body dimensions: 27.7 x 20.7 x 35.8mm
- Coil resistance: 600Ω
- Coil current: 40mA
- Contact material: AgNi
- Coil power consumption: 1W
- Leads: 2,8x0,5mm connectors
- Related items: 94.04, 94.14
Additional information
- Gross weight: 0.03 kg
