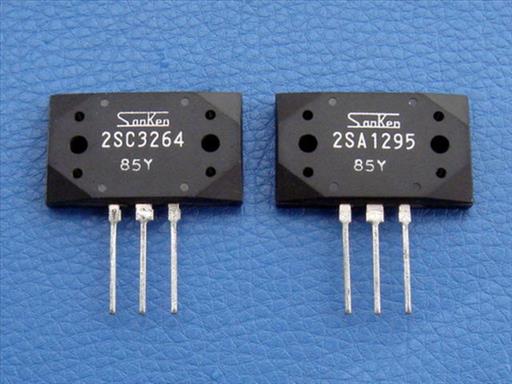

2SC3264 TRANSISTOR

– Polarity: NPN
– Maximum Collector Power Dissipation Pc: 200 W
– Maximum Collector-Base Voltage |Vcb|: 230 V
– Maximum Collector-Emitter Voltage |Vce|: 230 V
– Maximum Emitter-Base Voltage |Veb|: 6 V
– Maximum Collector Current |Ic max|: 17 A
– Max. Operating Junction Temperature Tj: 125 °C
– Transition Frequency ft: 60 MHz
– Forward Current Transfer Ratio hFE, MIN: 50
– Noise Figure, dB: –
– Package: XM20
