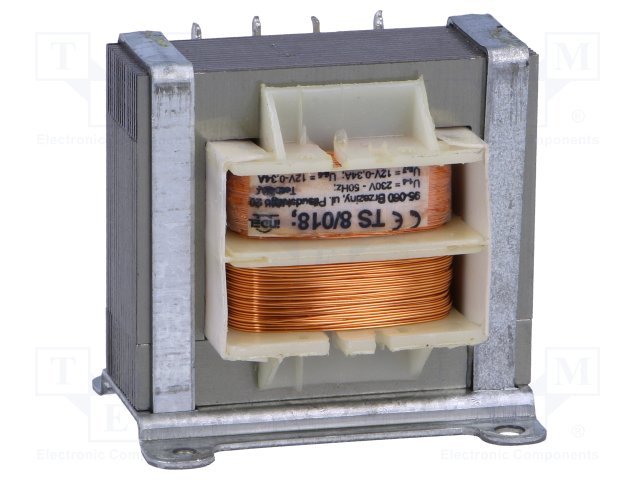

2X12V 0.34A 8VA MAIN TRANSFORMER 230V IN

Transformer: mains 8VA 230VAC 12V 12V 0.34A 0.34A IP00

Manufacturer INDEL
Type of transformer mains
Power 8VA
Primary voltage 230V AC
Secondary voltage 1 12V
Secondary voltage 2 12V
Secondary winding current 1 0.34A
Secondary winding current 2 0.34A
Leads for PCB
Mounting screw type
IP rating IP00
Thermal class Ta40B
Conform to the norm PN-EN 61558
Insulation class I
Electrical insulation strength 4kV/60s
Primary winding terminals 1-4
Secondary winding terminals 8-7, 6-5
Dimensions see Additional information
Gross weight: 0.26 kg
