4-PORT HIGH SPEED HDMI SWITCH ++

Connect 4 HDMI devices to an LCD, LED or plasma screen. The extra audio outputs can be connected to a Home Cinema set. When used in combination with HDMI cables with Ethernet function, all connected devices are able to connect to the internet. All connected devices receive each other’s audio signals via Audio Return Channel.

Colour: Black
Type electronic device: HDMI
Connections input: 4x HDMI Input
Outside material: Metal
Packaging: Giftbox
Connections output: HDMI Output + Toslink Female + RJ45 Female
Max. resolution: 1920 x 1080
Supported technology: Full HD
3D Support
ARC
Ethernet

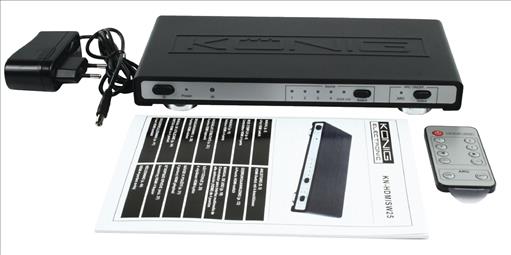

Package contents

• 1x Switch
• 1x Power supply
• 1x Remote control
• Manual

• Input: 4 HDMI female
• Output: 1 HDMI female
• Max. video resolution: 1080P
• Max. bandwidth: 225 MHz/2.25 Gbps per channel 6.75 Gbps all channel
• Compressed audio sound e.g.: DTS Digital, Dolby Digital
including DTS-HD and Dolby True HD
• Supports: [email protected]/24Hz, [email protected]/60 Hz/50 Hz
• Supports: 12 Bit per channel 36 bit all channel deep colour
• Supports: Audio Return Channel ARC from sink device
• Supports: Digital audio Toslink and COAX output simultaneously + stereo audio output
• Supports: CEC
• Supports: Uncompressed audio such as LPCM
• Built-in HDCP engine for Instant Port Switching IPS
• Width: 253 mm
• Height: 34 mm
• Depth: 118 mm
