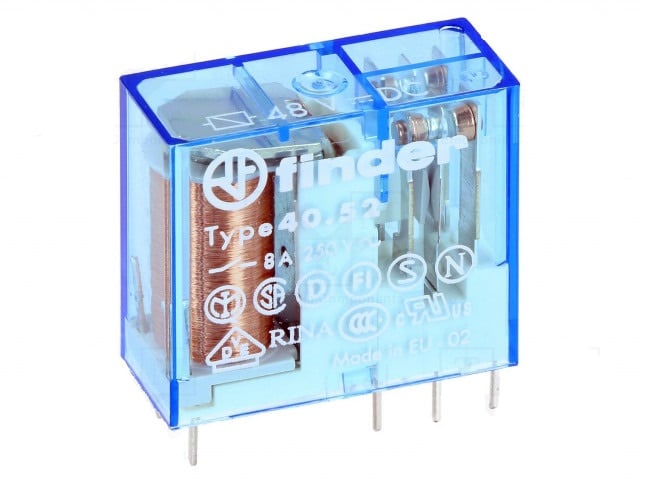

48VDC 8A Relay electromagnetic
€16,90
| Weight | 17 g |
|---|---|
| Dimensions | 29 × 12,4 × 25 cm |
In stock
– Manufacturer: FINDER
– Type of relay: electromagnetic
– Contacts configuration: DPDT
– Rated coil voltage: 48V DC
– AC contacts rating @R
at resistive load: 8A / 250V AC
– DC contacts rating @R
at resistive load: 8A / 30V DC
– Contact current max.: 15A
– Switched voltage: max. 220V DC, max. 400V AC
– Relay variant: miniature
– Mounting: PCB, socket
– Coil resistance: 3.5kΩ
– Body dimensions: 29×12.4x25mm
– Coil power consumption: 650mW
– Operating temperature: -40…85°C
– Relay series: 40.52
– Contact material: AgNi
– Terminal pitch: 5mm
– Coil current: 14mA
Additional information
– Gross weight: 16.46 g
- Manufacturer: FINDER
- Type of relay: electromagnetic
- Contacts configuration: DPDT
- Rated coil voltage: 48V DC
- AC contacts rating @R
at resistive load: 8A / 250V AC
- DC contacts rating @R
at resistive load: 8A / 30V DC
- Contact current max.: 15A
- Switched voltage: max. 220V DC, max. 400V AC
- Relay variant: miniature
- Mounting: PCB, socket
- Coil resistance: 3.5kΩ
- Body dimensions: 29x12.4x25mm
- Coil power consumption: 650mW
- Operating temperature: -40...85°C
- Relay series: 40.52
- Contact material: AgNi
- Terminal pitch: 5mm
- Coil current: 14mA
Additional information
- Gross weight: 16.46 g
