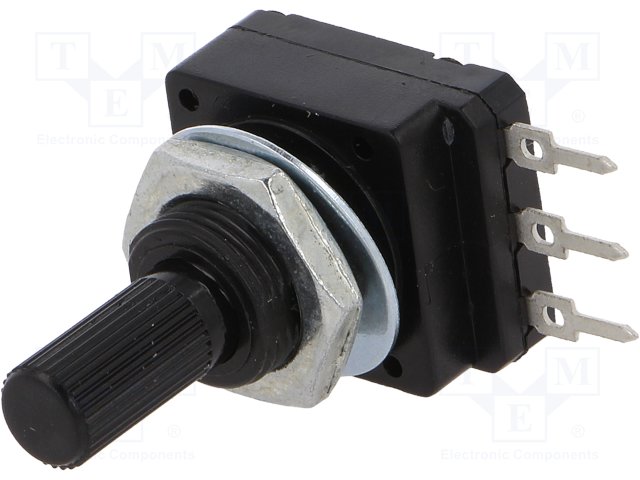

500K POT SINGLE SAFT 60mW 6mm plastic

– Manufacturer: SR PASSIVES
– Type of potentiometer: shaft
– Kind of potentiometer: single turn
– Resistance : 500kΩ
– Power: 60mW
– Mounting: PCB
– Shaft diameter: 6mm
– Shaft length: 12mm
– Characteristics: linear
– Body dimensions: 18x16x8mm
– Thread length: 8mm
– Body material: plastic
– Potentiometer features: mono
– Track material: carbon
– Shaft surface: knurled
– Mechanical rotation angle: 300°
– Terminal pitch: 5mm
– L shaft length : 20mm
– Panel cutout diameter: 10mm
– Max. operating voltage: 100V AC

Additional information
– Gross weight: 4.79 g
