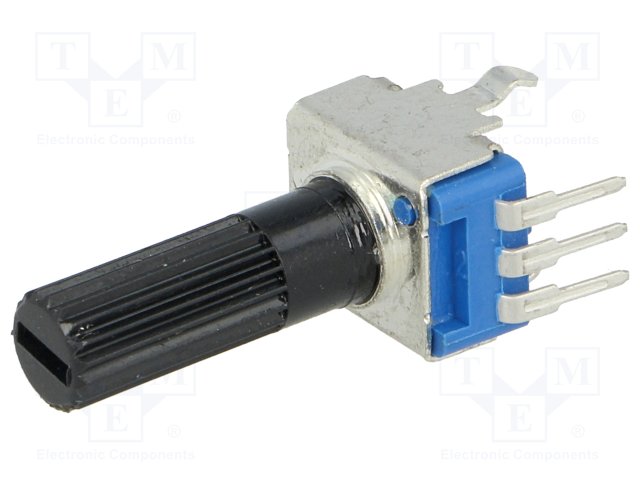

5kΩ 125mW Potentiometer 6mm

– Manufacturer: SR Passives
– Type of potentiometer: shaft
– Kind of potentiometer: single turn
– Resistance : 5kΩ
– Power: 125mW
– Tolerance: ±20
– Mounting: THT
– Shaft diameter: 6mm
– Shaft length: 18mm
– Characteristics: linear
– Body dimensions: 10.4×11.8×6.8mm
– Body material: plastic
– Track material: carbon
– Shaft surface: knurled
– Mechanical rotation angle: 300°
– Terminal pitch: 2.54mm
– Max. operating voltage: 200V
– Shaft material: plastic
– Control: vertical
– Potentiometer features:
without fastening thread
mono

Additional information
– Gross weight: 1.83 g
