Sold out

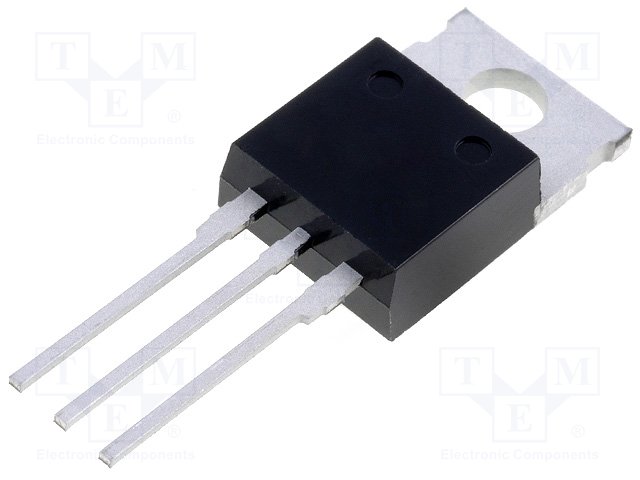

650V 6.2A 250W Transistor N-MOSFET
€1,80
Out of stock
Description
– Manufacturer: ALPHA OMEGA SEMICONDUCTOR
– Type of transistor: N-MOSFET
– Polarisation: unipolar
– Drain-source voltage: 650V
– Drain current: 6.2A
– Power dissipation: 250W
– Case: TO220
– Gate-source voltage: ±30V
– On-state resistance: 1Ω
– Mounting: THT
– Gate charge: 27.7nC
– Kind of channel: enhanced
Additional information
– Gross weight: 3 g
Specifications
- Manufacturer: ALPHA OMEGA SEMICONDUCTOR
- Type of transistor: N-MOSFET
- Polarisation: unipolar
- Drain-source voltage: 650V
- Drain current: 6.2A
- Power dissipation: 250W
- Case: TO220
- Gate-source voltage: ±30V
- On-state resistance: 1Ω
- Mounting: THT
- Gate charge: 27.7nC
- Kind of channel: enhanced
Additional information
- Gross weight: 3 g
Packaging
Length: 0 mm
Width: 0 mm
Height: 0 mm
Weight: 0 kg
