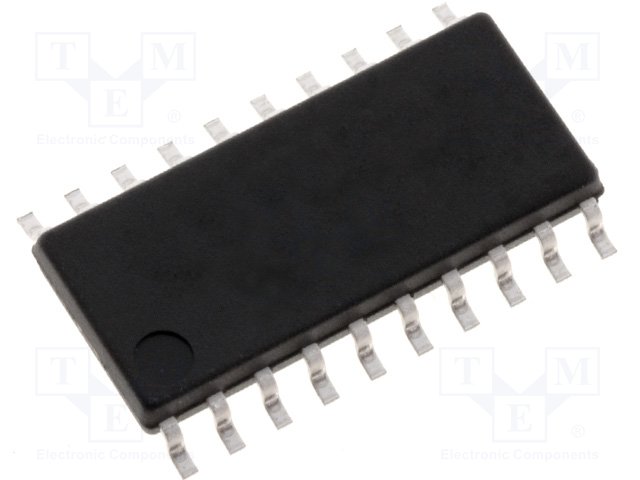

74LCX245WM IC transceiver
€1,15
In stock
– Manufacturer: ON SEMICONDUCTOR FAIRCHILD
– Type of integrated circuit: digital
– Kind of integrated circuit: 8bit I/O port, bidirectional transceiver
– Number of channels: 8
– Number of inputs: 10
– Mounting: SMD
– Case: SO20
– Supply voltage: 2…3.6V DC
– Kind of package: tube
– Operating temperature: -40…85°C
– Number of outputs: 8
– Kind of output: 3-state
– Quiescent current: 10µA
Additional information
– Gross weight: 0.55 g
- Manufacturer: ON SEMICONDUCTOR FAIRCHILD
- Type of integrated circuit: digital
- Kind of integrated circuit: 8bit I/O port, bidirectional transceiver
- Number of channels: 8
- Number of inputs: 10
- Mounting: SMD
- Case: SO20
- Supply voltage: 2...3.6V DC
- Kind of package: tube
- Operating temperature: -40...85°C
- Number of outputs: 8
- Kind of output: 3-state
- Quiescent current: 10µA
Additional information
- Gross weight: 0.55 g
