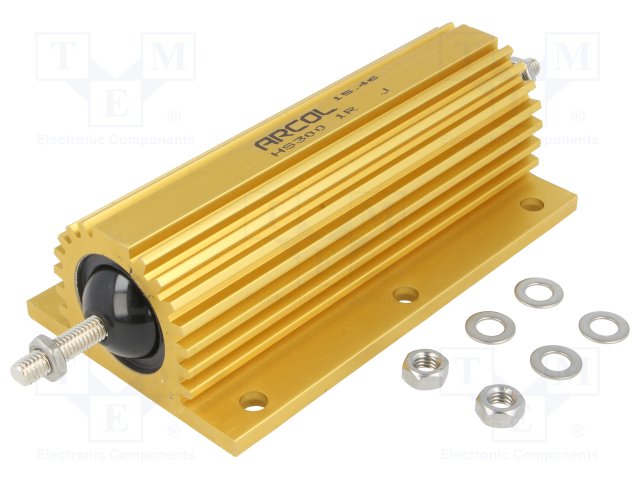

8Ω 300W wire-wound resistor

– Manufacturer: ARCOL
– Type of resistor: wire-wound
– Kind of resistor: with heatsink
– Mounting: screw
– Resistance: 8Ω
– Power: 300W
– Tolerance: ±1
– Max. operating voltage: 2500V
– Body dimensions: 128×72.5×41.8mm
– Temperature coefficient: 100ppm/°C
– Resistor features: needs additional heatsink
– Leads: for soldering
– Mounting holes pitch: 104 x 59mm
– Power without heatsink: 60W

Additional information
– Gross weight: 0.6 kg
