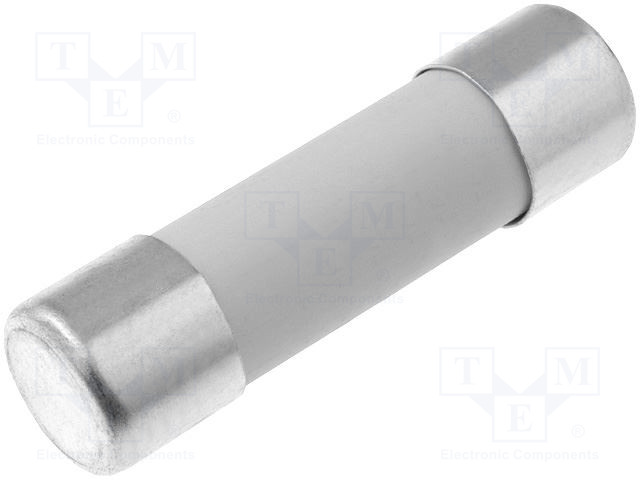

8A fast blow ceramic fuse 5x20mm x10pcs 250VAC

– Manufacturer: ESKA
– Type of fuse: fuse
– Fuse characteristics: quick blow
– Breaking capacity: 1.5kA
– Current rating: 8A
– Rated voltage: 250V AC
– Kind of fuse: ceramic, cylindrical, miniature
– Fuse size: 5x20mm
– Breaking characteristics: 10 In: max 30 ms, 2,1 In: max 30 min., 2,75 In: max 20 s, 2,75 In: min 40 ms, 4 In: max 1 s, 4 In: min 10 ms
– Max voltage drop: 200mV
– Fuses features: Extinguishing agent
– Manufacturer series: 520.500

Additional information
– Gross weight: 1.072 g
