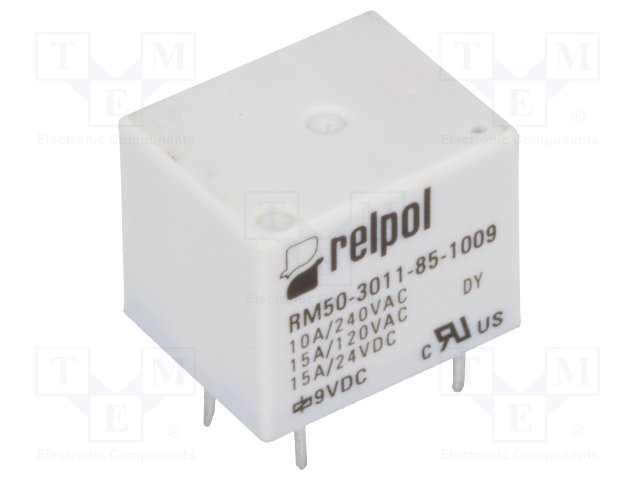

9VDC 10A RELAY ELECTROMAGNET 5PINS
€4,65
Out of stock
– Manufacturer: RELPOL
– Type of relay: electromagnetic
– Contacts configuration: SPDT
– Rated coil voltage: 9V DC
– Contact current max.: 10A
– Switched voltage: max 277V AC, max 30V DC
– Relay variant: miniature
– Mounting: PCB
– Coil resistance: 225Ω
– Operate time: 10ms
– Body dimensions: 19 x 15.4 x 15.5mm
– Release time: 5ms
– Coil power consumption: 360mW
– IP rating: IP64
– Operating temperature: -30…55°C
– Relay series: RM50
– Terminal pitch: 2mm
Additional information
– Gross weight: 8.97 g
