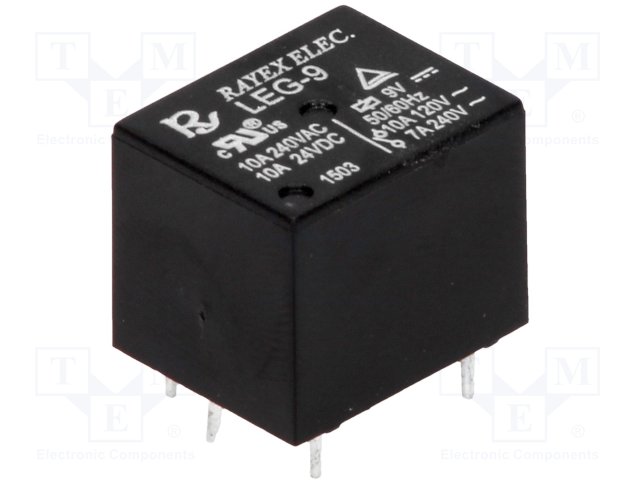

9VDC 10A relay electromagnetic 5pin
€2,15
In stock
– Manufacturer: RAYEX ELECTRONICS
– Type of relay: electromagnetic
– Contacts configuration: SPDT
– Rated coil voltage: 9V DC
– AC contacts rating @R
at resistance load: 10A / 120V AC
– DC contacts rating @R
at resistance load: 10A / 24V DC
– Contact current max:. 10A
– Switched voltage: max. 100V DC, max. 240V AC
– Relay variant: miniature
– Mounting: PCB
– Coil resistance: 225Ω
– Operate time: 8ms
– Body dimensions: 19.5×15.8x15mm
– Release time: 8ms
– Coil power consumption: 360mW
– Operating temperature: -25…80°C
– Relay series: LEG
– Contact resistance: 100mΩ
– Terminal pitch: 2mm
– Coil current: 40mA
Additional information
– Gross weight: 8.2 g
