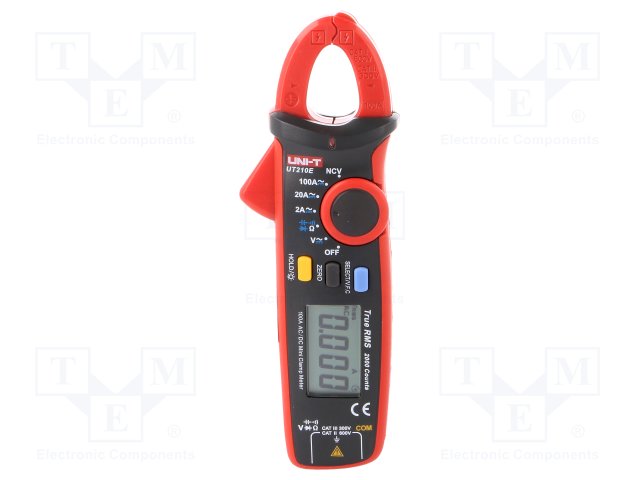

AC/DC digital clamp meter
€129,00
Out of stock
– Manufacturer: UNI-T
– Type of meter: AC/DC digital clamp meter
– Max. diameter of measured cable: 17mm
– Kind of display used: LCD 2000, with a backlit
– DC current measuring range: 2/20/100A
– DC current measuring accuracy: ±2 + 3 digits
– AC current measuring range: 2/20/100A
– AC current measuring accuracy: ±2,5 + 5 digits
– DC voltage measuring range: 0,1m…200m/2/20/200/600V
– DC voltage measuring accuracy: ±0,7 + 3 digits
– AC voltage measuring range: 1m…2/20/200/600V
– AC voltage measuring accuracy: ±1 + 3 digits
– True effective value measurement: True RMS
– Resistance measuring range: 0,1…200/2k/20k/200k/2M/20MΩ
– Resistance measuring accuracy: ±1 + 2 digits
– Capacitance measuring range: 2n/20n/200µ/2m/20mF
– Continuity test: acoustic signal for R10Ω
– Diode test: yes
– Pollution degree: 2
– Dimensions: 175x60x33.5mm
– Weight with battery: 170g
– Power supply: 2 batteries 1,5V LR03 AAA
– Measurement: AC current, AC voltage, capacitance, continuity, DC current, DC voltage, resistance
Conform to the norm EN61010 300V CAT III, EN61010 600V CAT II
– Measuring instrument features: auto and manual ranging
automatic power-off
contactless voltage detector
ergonomic body shape enables one-hand operation
HOLD function
low battery indicator
low-pass filter
overflow indicator
zeroing function
– Standard equipment: batteries
test leads
