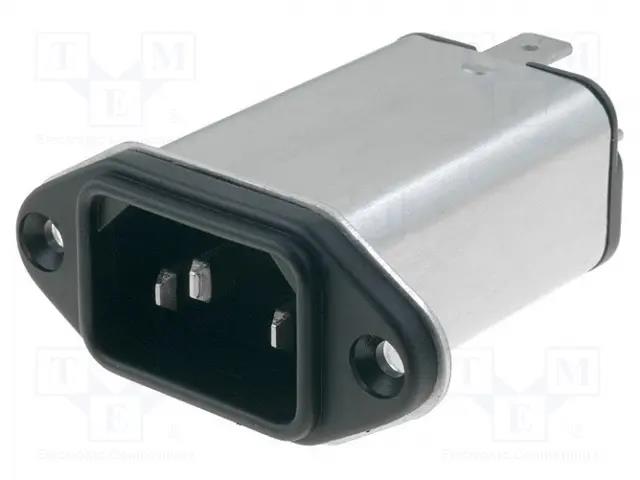

AC supply socket male 10A 250VAC IEC 60320 0.3mH
€32,00
Out of stock
– Manufacturer: SCHURTER
– Type of connector: AC supply
– Connector: socket
– Kind of connector: male
– Current rating: 10A
– Standard: IEC 60320
– Mechanical mounting: for panel mounting, screw
– Electrical mounting: 6.3×0,8mm connectors
– Operating temperature: -25…85°C
– Leads: 6,3×0,8mm connectors
– Panel thickness: max. 8mm
– Inductance: 0.3mH
– Capacitance Cx: 47nF
– Capacitance Cy: 2.2nF
– Mounting holes pitch: 40mm
– Leakage current: 0.5mA
– Flammability rating: UL94V-0
– Supply voltage frequency: 50/60Hz
– Thread: M3
– Rated voltage: 250V AC
– Connector variant:
C14 E
with filter
Additional information
– Gross weight: 37.96 g
