ANDERSON PLUG FOR BATTERY CONNECTION 175A
€16,50
Out of stock

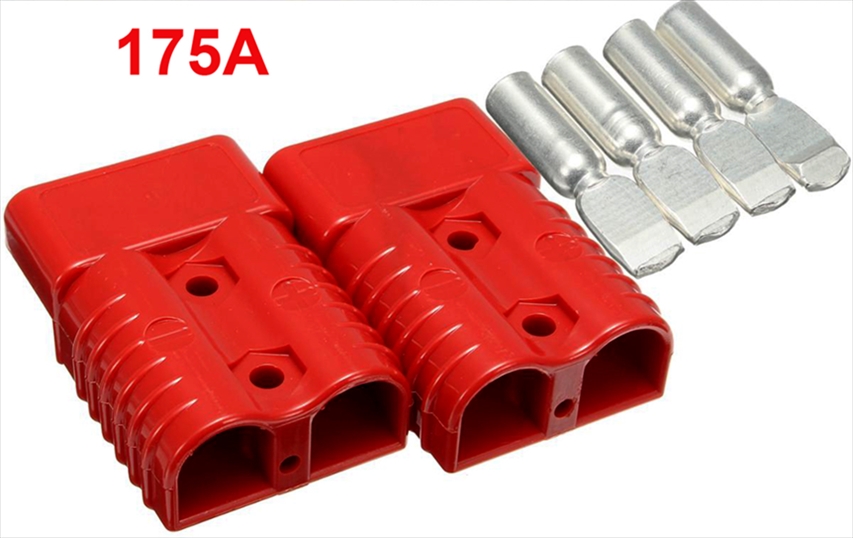

Anderson type BC-AND 2-pole 175A plug set with a maximum voltage of 600 V AC or DC, for quick connection and disconnection of battery socket. The innovative BC-AND connector provides reliability, design flexibility and safety in installation and maintenance. Both ends are suitable for connection to the power or load side due to their identical connectors. The ends are made to connect only one way, making it impossible to connect the wrong polarities together, preventing accidental reverse polarity when connecting a charger. Shell made of fire retardant materials.
Universal
The Anderson 2-Pole Heavy-Duty and Multi-Purpose BC-AND Battery Quick Connect Kit, Provides a simple and convenient method of connecting/disconnecting from the power supply of an electrical device such as: remote battery chargers, power inverters, solar power plants, trailers, electric vehicles, electric buses, forklifts, tractors, golf carts, aerial platforms, wheel jacks, vertical lift vehicles, road lift vehicles, aerial lifts, sightseeing vehicles, UPS, electric machine, electric wheelchair, electric floor scrubber, lawn mower, vacuum cleaner, medical equipment, suction machine, pressure reducer, electric mobile therapy bed, rechargeable batteries, power distribution equipment, industrial equipment, AC / DC power supplies and battery charging systems. or for any purpose requiring a high current quick disconnect plug.
Efficient
Anderson type BC-AND Plug Sets, 2 pole heavy duty are suitable for low or medium current use. With 4 silver-plated red copper terminals, they have strong electrical conductivity and reduce resistance to guarantee stable voltage and current. You can choose the right plug set based on the thickness of the wire you want to put the plugs on and the corresponding current of the load.
– Maximum current: 175A
– Rated Voltage: 600V
– Number of pins: 2
– Connection type: conductor – conductor
– Mechanical assembly : on the cable
– Electrical assembly: tightening
– Color: red
– Housing material : Polycarbonate fire resistant
– Contact material: copper alloy
– Contact cover : Silver plated
– Operating temperature: -20ºC to 105ºC
– Type of plugs : hermaphrodites
Anderson type BC-AND 2-pole 175A plug set with a maximum voltage of 600 V AC or DC, for quick connection and disconnection of battery socket. The innovative BC-AND connector provides reliability, design flexibility and safety in installation and maintenance. Both ends are suitable for connection to the power or load side due to their identical connectors. The ends are made to connect only one way, making it impossible to connect the wrong polarities together, preventing accidental reverse polarity when connecting a charger. Shell made of fire retardant materials.
Universal
The Anderson 2-Pole Heavy-Duty and Multi-Purpose BC-AND Battery Quick Connect Kit, Provides a simple and convenient method of connecting/disconnecting from the power supply of an electrical device such as: remote battery chargers, power inverters, solar power plants, trailers, electric vehicles, electric buses, forklifts, tractors, golf carts, aerial platforms, wheel jacks, vertical lift vehicles, road lift vehicles, aerial lifts, sightseeing vehicles, UPS, electric machine, electric wheelchair, electric floor scrubber, lawn mower, vacuum cleaner, medical equipment, suction machine, pressure reducer, electric mobile therapy bed, rechargeable batteries, power distribution equipment, industrial equipment, AC / DC power supplies and battery charging systems. or for any purpose requiring a high current quick disconnect plug.
Efficient
Anderson type BC-AND Plug Sets, 2 pole heavy duty are suitable for low or medium current use. With 4 silver-plated red copper terminals, they have strong electrical conductivity and reduce resistance to guarantee stable voltage and current. You can choose the right plug set based on the thickness of the wire you want to put the plugs on and the corresponding current of the load.
- Maximum current: 175A
- Rated Voltage: 600V
- Number of pins: 2
- Connection type: conductor - conductor
- Mechanical assembly : on the cable
- Electrical assembly: tightening
- Color: red
- Housing material : Polycarbonate fire resistant
- Contact material: copper alloy
- Contact cover : Silver plated
- Operating temperature: -20ºC to 105ºC
- Type of plugs : hermaphrodites
