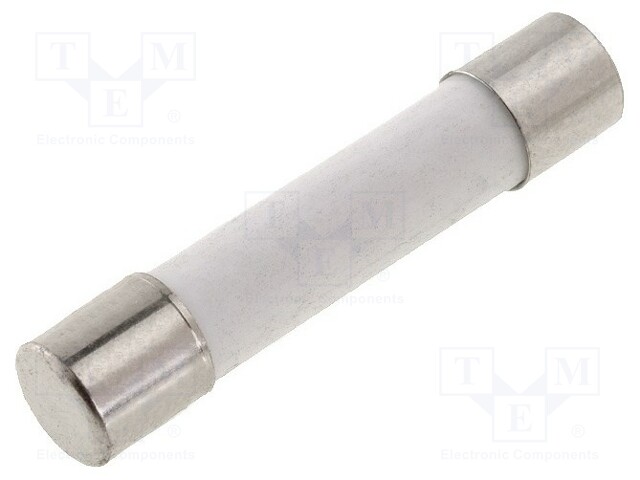

Ceramic fuse T2A-500V 6.3X32mm

– Manufacturer: SIBA
– Type of fuse: fuse
– Fuse characteristics: time-lag
– Breaking capacity: 1.5kA
– Current rating: 2A
– Rated voltage: 500V AC
– Kind of fuse: ceramic, cylindrical, miniature
– Fuse size: 6.3x32mm
– Breaking characteristics:
1.5In: min 1h,
2.75In: min 400ms,
2.75In: max 80s,
4In: min 150ms,
4In: max 5s,
10In: min 20ms,
10In: max 300ms
– Max voltage drop: 180mV
– Contact material: brass
– Fuses features: Extinguishing agent
– Energy I2t: 10A2s
– Contact plating: nickel plated

Additional information
– Gross weight: 2.438 g
