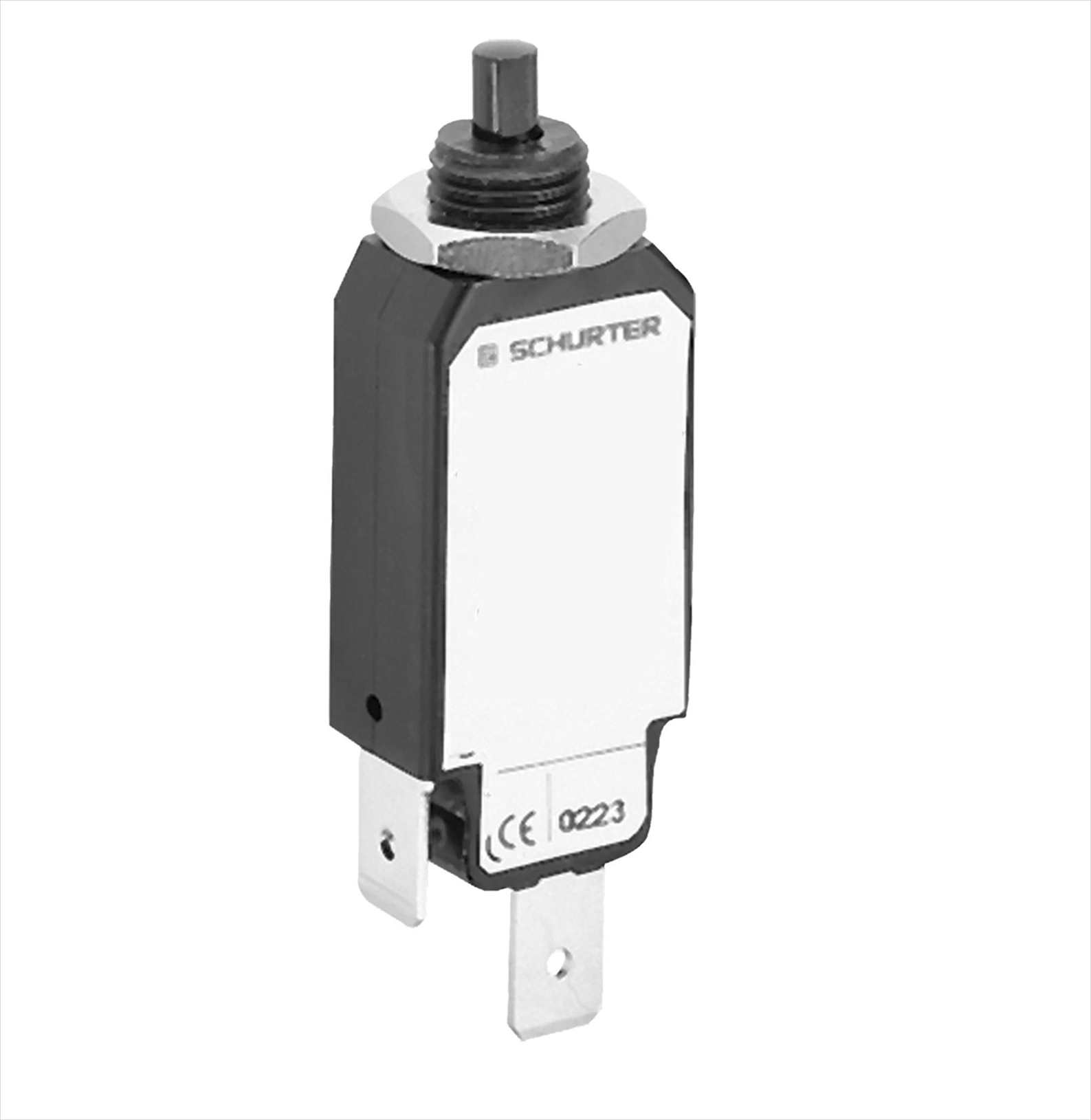

CIRCUIT BREAKER 240AC/48VDC 12A SPST 1 POLES
€15,00
In stock
– Manufacturer: SCHURTER
– Type of protection: circuit breaker
– Rated voltage: 48V DC/240V AC
– Current rating: 12A
– Contacts configuration: SPST
– Number of poles: 1
– Mounting: screw
– Manufacturer series: T11-211
– Leads: connectors
– Leads dimensions: 6.3×0.8mm
– Mounting hole dimensions: Ø9.6mm
– Dielectric strength: 1.5kV AC
– Thread length: 6mm
– Related items: TZZ01
– Breakers application: household appliance, industrial appliance, UPS
– Breaker features: setting indication
– Trade name: MCB
– Operating temperature: -5…60°C
