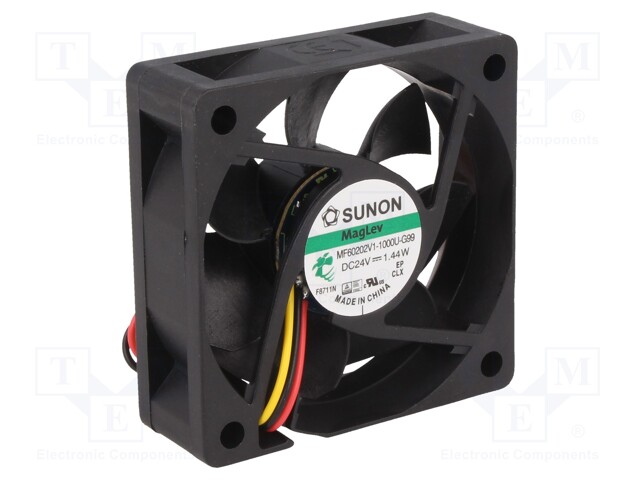

DC 24V FAN 60X60X20mm
€19,90
Out of stock
– Manufacturer: SUNON
– Type of fan: DC
– Kind of fan: axial
– Supply voltage: 24V DC
– Operating voltage: 8…27.6V
– Fan dimensions: 60x60x20mm
– Power consumption: 1.32W
– Current rating: 0.055A
– Fan efficiency: 38.87m3/h
– Noise level: 33.5dBA
– Kind of Bearing: Vapo
– Signal output: F type
– Rotational rate/speed: 5000 ±15rpm
– Min. insulation resistance: 10MΩ
– Impeller material: thermoplastic
– Enclosure material: thermoplastic
– Insulation class A
– Leads: 3 leads
– Operating temperature: -10…70°C
– Cable length: 290mm
– Flammability rating: UL94V-0
– Additional functions: Autorestart
– Fan motor: brushless DC
– Static pressure: 5.33mm H2O
– Related items: BUB-72H
– Weight: 50g
– Wire size: 26AWG
Additional information
– Gross weight: 50 g
- Manufacturer: SUNON
- Type of fan: DC
- Kind of fan: axial
- Supply voltage: 24V DC
- Operating voltage: 8...27.6V
- Fan dimensions: 60x60x20mm
- Power consumption: 1.32W
- Current rating: 0.055A
- Fan efficiency: 38.87m3/h
- Noise level: 33.5dBA
- Kind of Bearing: Vapo
- Signal output: F type
- Rotational rate/speed: 5000 ±15rpm
- Min. insulation resistance: 10MΩ
- Impeller material: thermoplastic
- Enclosure material: thermoplastic
- Insulation class A
- Leads: 3 leads
- Operating temperature: -10...70°C
- Cable length: 290mm
- Flammability rating: UL94V-0
- Additional functions: Autorestart
- Fan motor: brushless DC
- Static pressure: 5.33mm H2O
- Related items: BUB-72H
- Weight: 50g
- Wire size: 26AWG
Additional information
- Gross weight: 50 g
