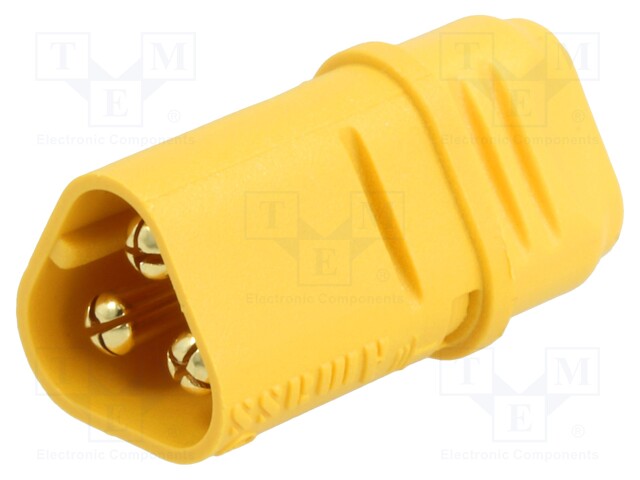

DC 3PIN PLUG MALE FOR SOL. 15A -500V
€1,55
In stock
– Manufacturer: AMASS
– Connector: plug
– Type of connector: DC supply
– Connector series: MT30
– Kind of connector: male
– Number of pins: 3
– Mechanical mounting: for cable
– Electrical mounting: soldering
– Contact plating: gold flash
– Colour: yellow
– Current rating: 15A
– Flammability rating: UL94V-0
– Operating temperature: -20…120°C
– Rated voltage: 500V
– Spatial orientation : straight
– Contact material: brass
– Mechanical durability: 1000 cycles
– Body material: polyamide
– Wire size: 16AWG
Additional information
– Gross weight: 1.89 g
