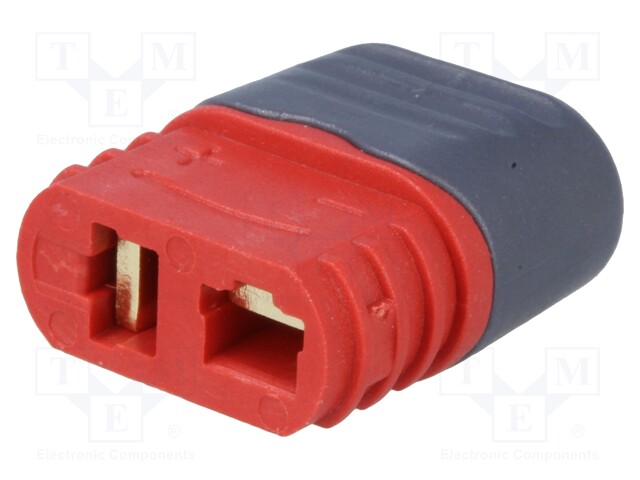

DC supply plug AM-1015 female 2pin 25A
€0,75
In stock
– Manufacturer: AMASS
– Connector: plug
– Type of connector: DC supply
– Connector series: AM-1015
– Kind of connector: female
– Number of pins: 2
– Mechanical mounting: for cable
– Electrical mounting: soldered
– Contact plating : gold flash
– Colour: red
– Current rating : 25A
– Flammability rating: UL94V-0
– Operating temperature: -20…120°C
– Rated voltage: 500V
– Spatial orientation: straight
– Contact material: brass
– Mechanical durability: 1000 cycles
– Body material: polyamide
– Wire size: 12AWG
Additional information
– Gross weight: 2.867 g
