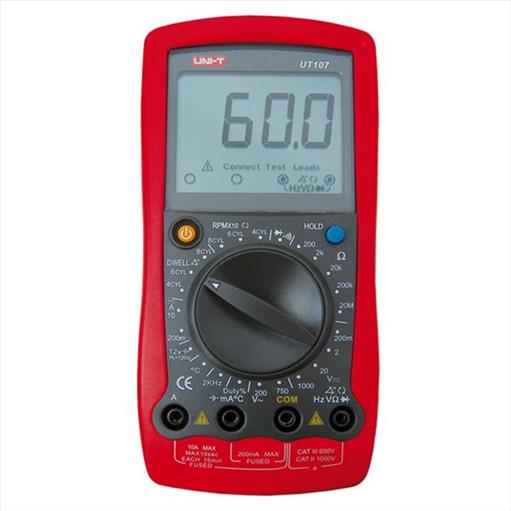

Digital multimeter LCD VDC: 200m/2/20/200/1000V

– Manufacturer: UNI-T
– Type of meter: digital multimeter
– Measurement: continuity, AC voltage, DC voltage, transistors gain hFE, capacitance, AC current, resistance, DC current
– Kind of display used: LCD
– DC voltage measuring range: 200m/2/20/200/1000V
– DC voltage measuring accuracy: ±0,5 + 1 digit
– AC voltage measuring range: 2/20/200/750V
– AC voltage measuring accuracy: ±0,8 + 3 digits
– DC current measuring range: 20µ/2m/200m/10A
– DC current measuring accuracy: ±0,8 + 1 digit
– AC current measuring range 2m/200m/10A
– AC current measuring accuracy: ±1 + 3 digits
– Resistance measuring range: 200/2k/20k/2M/20M/200MΩ
– Resistance measuring accuracy: ±0,8 + 1 digit
– Capacitance measuring range: 2n/200n/20µF
– Capacitance measuring accuracy: ±4 + 3 digits
-Diode test: 2,8V
– Continuity test acoustic signal for: R10Ω
– Weight: 310g
– Power supply: 1 battery 9V 6F22
Dimensions W x H x D: 83x172x38mm
– Measuring instrument features:
automatic power-off
AUTO HOLD
manual ranging
low battery indicator
– Standard equipment:
battery
test leads

Additional information
– Gross weight: 485.5 g
