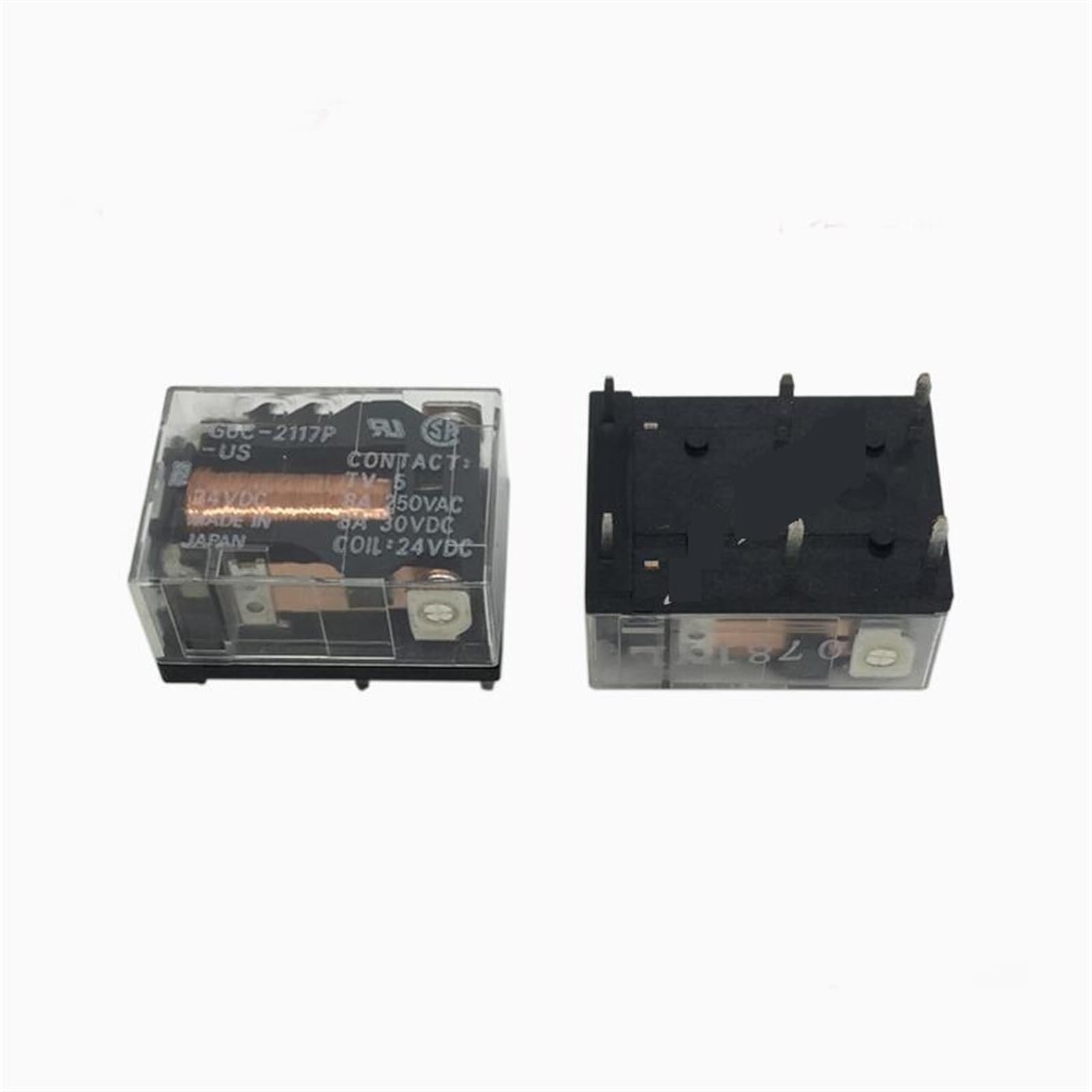

ELECTR. RELAY COIL 24VDC -8A/30VDC
€11,80
In stock
– Manufacturer: OMRON Electronic Components
– Type of relay: electromagnetic
– Contacts configuration:: SPST-NO + SPST-NC
– Rated coil voltage: 24V DC
– Contact current max.: 8A
– AC contacts rating: 8A / 250V AC
– DC contacts rating: 8A / 30V DC
– Relay series: G6C
-Switched voltage: max. 125V DC, max. 380V AC
– Relay variant: miniature
– Mounting: PCB, socket
– Coil resistance: 2.88kΩ
– Operate time: 10ms
– Body dimensions: 20x15x10mm
– Release time: 10ms
– Operating temperature: -25…70°C
– Contact resistance: 30mΩ
– Terminal pitch: 7.62mm
– Coil current: 8.3mA
– Enclosure description: standard seal
- Manufacturer: OMRON Electronic Components
- Type of relay: electromagnetic
- Contacts configuration:: SPST-NO + SPST-NC
- Rated coil voltage: 24V DC
- Contact current max.: 8A
- AC contacts rating: 8A / 250V AC
- DC contacts rating: 8A / 30V DC
- Relay series: G6C
-Switched voltage: max. 125V DC, max. 380V AC
- Relay variant: miniature
- Mounting: PCB, socket
- Coil resistance: 2.88kΩ
- Operate time: 10ms
- Body dimensions: 20x15x10mm
- Release time: 10ms
- Operating temperature: -25...70°C
- Contact resistance: 30mΩ
- Terminal pitch: 7.62mm
- Coil current: 8.3mA
- Enclosure description: standard seal
