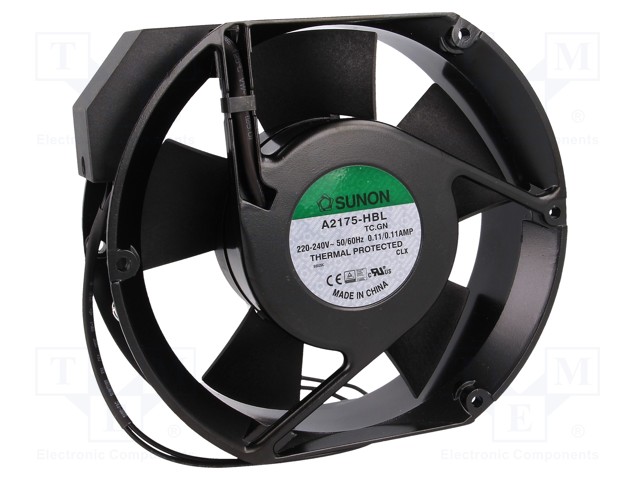

Fan 230VAC axial 171x151x51mm
€77,00
Out of stock
– Manufacturer: SUNON
– Type of fan: AC
– Kind of fan: axial
– Supply voltage: 230V AC
– Fan dimensions: 171x151x51mm
– Power consumption: 25W
– Current rating: 110mA
– Fan efficiency: 344m3/h ±10
– Noise level: 51dBA
– Kind of Bearing: ball bearing
– Rotational rate/speed: 2800rpm
– Weight: 908g
– Current and power consumption tolerance: ±15
– Frequency: 50Hz
– Min. insulation resistance: 500MΩ
– Impeller material: thermoplastic
– Enclosure material: aluminium
– Insulation class: B
– Leads: 2 leads
– Operating temperature: -10…70°C
– Cable length: 280mm
– Flammability rating: UL94V-0
– Fan motor: Alveolate with starting capacitor
– Static pressure: 15.74mm H2O
– Wire size: 18AWG
Additional information
Gross weight: 870.9 g
