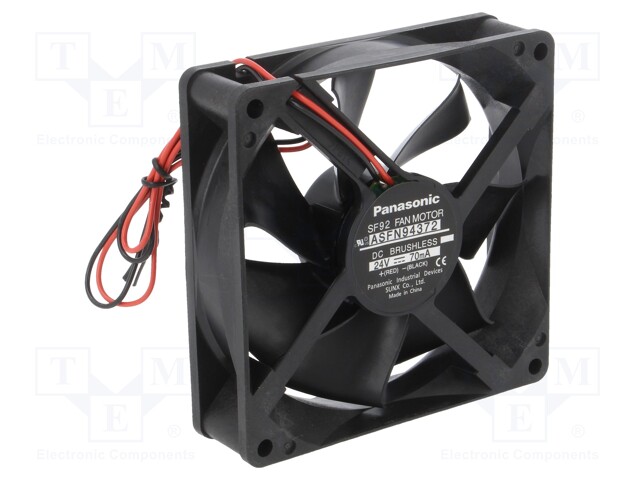

FAN 24VDC 92X92X25mm ball bearing
€32,00
Out of stock
– Manufacturer: PANASONIC
– Type of fan: DC
– Kind of fan: axial
– Supply voltage: 24V DC
– Operating voltage: 10…27.6V
– Fan dimensions: 92x92x25mm
– Power consumption: 1.68W
– Current rating: 70mA
– Fan efficiency: 58.8m3/h
– Noise level: 22dBA
– Kind of Bearing: ball bearing
– Rotational rate/speed: 2000rpm
– Current and power consumption: tolerance: ±15
– Min. insulation resistance: 10MΩ
– Enclosure material: plastic
– Leads: 2 leads
– Operating temperature: -10…60°C
– Cable length: 0.3m
– Fan motor: brushless DC
– Static pressure: 1.468mm H2O
– Weight: 85g
Additional information
– Gross weight: 125.2 g
