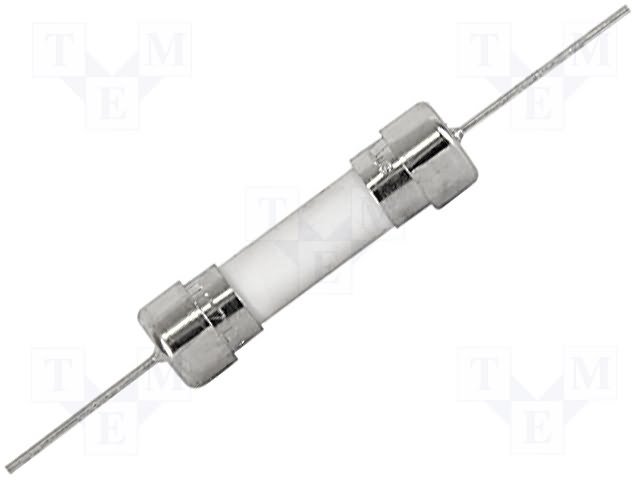

FUSE 4A FAST BLOW 5X20MM X2PCS

Fuse: fuse quick blow ceramic 4A 250VAC 5x20mm SP

-Manufacturer SCHURTER
-Type of fuse fuse
-Fuse characteristics quick blow
-Kind of fuse ceramic, miniature
-Breaking capacity 1.5kA
-Current rating 4A
-Rated voltage 250V AC
-Fuse size 5x20mm
-Breaking characteristics 1,5 In: min 1 h, 2,1 In: max 30 min., 2,75 In: min 10 ms, 2,75 In: max 2 s, 4 In: min 3 ms, 4 In: max 300 ms, 10 In: max 20 ms
-Max voltage drop 300mV
-Manufacturer series SP
-Leads for soldering

Additional information
-Gross weight: 1.51 g
