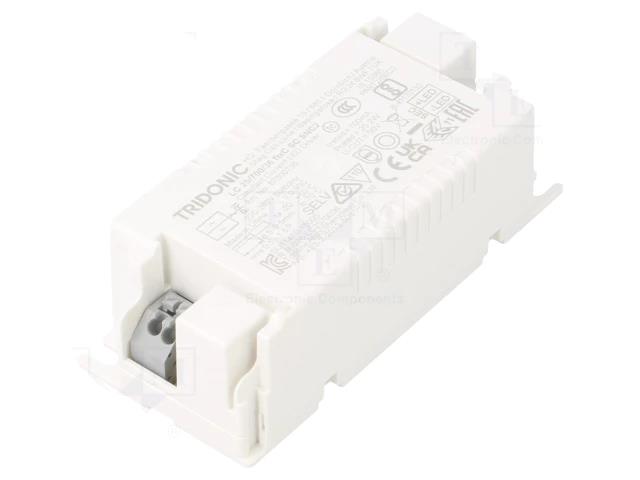

LED MODE SWICTH POWER SUPPLY 22-36VDC
€21,00
In stock
– Manufacturer: TRIDONIC
– Type of power supply: switched-mode
– Application: LED
– Kind of power supply: constant current
– Power: 25W
– Output voltage: 22…36V DC
– Output current: 700mA
– IP rating: IP20
– Body dimensions: 97x43x30mm
– Protection : anti-overload OPP, no-load, short circuit protection SCP
– Weight: 78g
– Operating temperature: -20…50°C
– Electrical connection: spring-loaded terminals, terminal block
– Number of outputs: 1
– Manufacturer series: LC
– Efficiency: 90
– Power supply/converter features:
rated parameters obtained at full load
– Supply voltage: 198…264V AC
