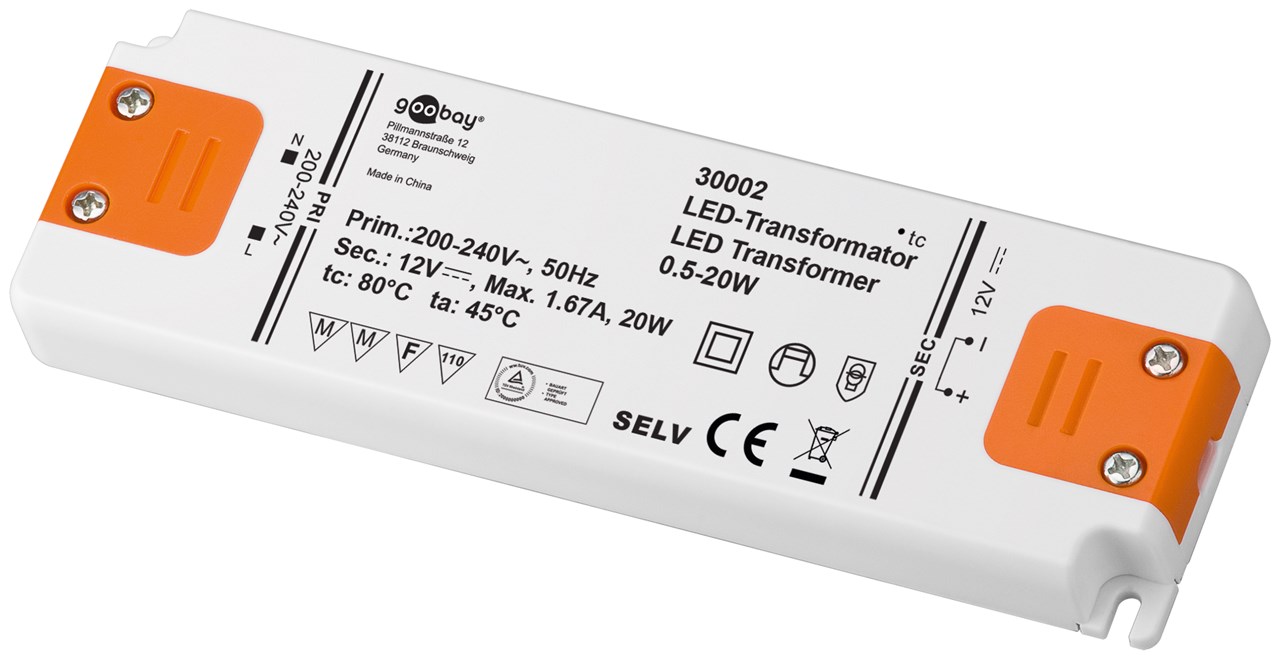

LED Transformer 12 V DC/20 W

– DC current source for LEDs with electronic ballast unit
– flat design for space-saving installation
– approved for installation in furniture
– safe electronic separation as per protection class II
– constant output voltage for parallel cicuits

– max. performance: 20 W
– minimum load: 0
– No-load power consumption: 0.5 W
– Dimmability: not dimmable
– Input, type
– Screw clamp: Input, Voltage Range
200 – 240 AC V
– Output, type: Screw clamp
– Output, max. amperage 1.67 A
– Output, voltage DC: 12 V DC
– number of inputs: 2 pcs.
– Input Cross Section: 0.75 mm²
– Output Cross Section: 0.75 mm²
– Output, max. amperage: 1670 mA
– Number of outputs: 2 ports

– protection class: IP20
– Appliance Class: II
– Color: orange, white
– Markings: WEEE, CE, bauartgeprüft: TÜV Rheinland
– Operating temperature from: -20 °C
– Operating temperature up to: 45 °C
– Length: 103 mm
– Width: 35.5 mm
– Height: 16 mm
– Weight: 55 g
