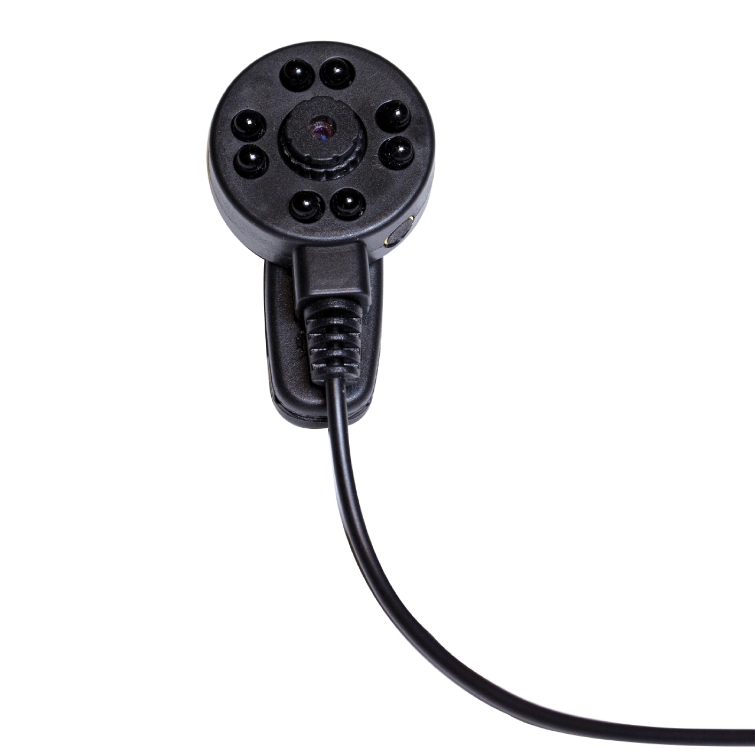

Micro CCTV camera with IR

Fully concealable professional color micro-camera for concealed installation

– PHILIPS 3299 optical sensor
– 1280×960 resolution 5 Megapixel
– Horizontal resolution 600TVL
– Minimum illumination 0 LUX （IR LED ON）
– S / N ratio ≥48dB
– Gamma 0.45
– Frame speed 50f / s （PAL） 60f / s （NTSC）
– Auto white balance
– Audio out Mono
– Video out 1.2Vp-p 75Ω CVBS
– Color image
– TV signal format: PAL / NTSC
– 1.8mm lens, opening angle 90 °
– Power supply 9-12Vcc current 120mA
– Dimensions Θ23mm * 13mm D * H） Weight 0.06KG
– 8 IR LEDs
– wavelength 940nm
– IR distance 1-3 meters
