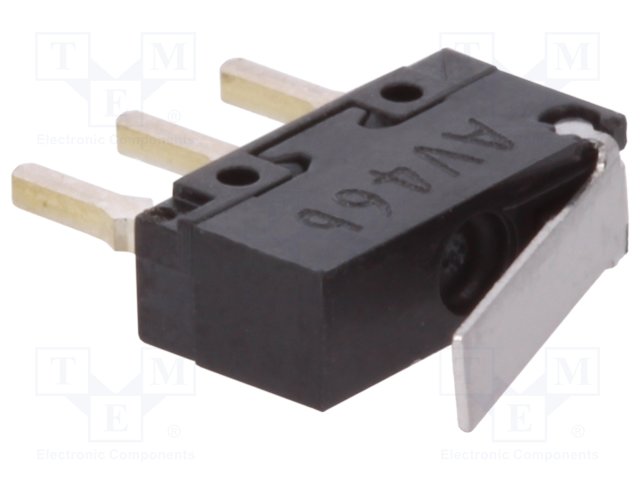

Microswitch 0.5A/30VDC snap action with lever

Microswitch SNAP ACTION with lever SPDT 0.5A/30VDC ON-ON

-Manufacturer PANASONIC
-Manufacturer series AV4
-Type of switch microswitch SNAP ACTION
-Switches features with lever
-Contacts configuration SPDT
-DC contacts rating @R
at resistance load 0.5A / 30VDC
-Switching method
item in brackets is instantaneous ON-ON
-Number of positions 2
-Stable positions number 1-position
-IP rating IP40
-Leads for PCB, straight
-Body dimensions 7.5 x 2.5 x 4.5mm
-Mechanical durability 300000cycles
-Operating temperature -25...85°C
-Operating Force 0.25N
-Electrical life 20000cycles
-Max. contact resistance: 200mΩ
-Min. insulation resistance 100MΩ
-Contact material AgNi

Additional information
-Gross weight: 0.17 g
