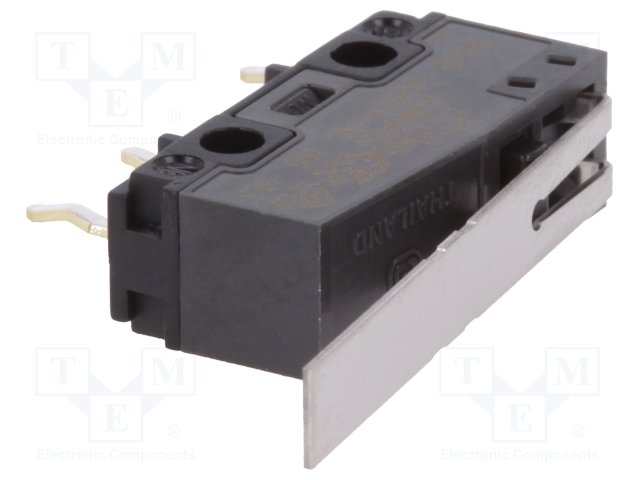

Microswitch 5A/250VAC 5A/30VDC snap action

-Manufacturer PANASONIC
-Manufacturer series AVM3
-Type of switch microswitch SNAP ACTION
-Switches features with lever
-Contacts configuration SPDT
-AC contacts rating @R
at resistance load 5A / 250VAC
-AC contacts rating @L
at inductive load 3A / 250VAC
-DC contacts rating @R
at resistance load 5A / 30VDC
-DC contacts rating @L
at inductive load 3A / 30VDC
-Switching method
item in brackets is instantaneous ON-ON
-Number of positions 2
-Stable positions number 1-position
-IP rating IP40
-Leads for PCB, straight
-Body dimensions 19.8 x 6.4 x 10.1mm
-Mechanical durability 30000000cycles
-Operating temperature -25...85°C
-Operating Force 0.44N
-Electrical life 50000cycles
-Max. contact resistance: 50mΩ
-Min. insulation resistance 100MΩ
-Contact material AgNi

Additional information
-Gross weight: 1.96 g
