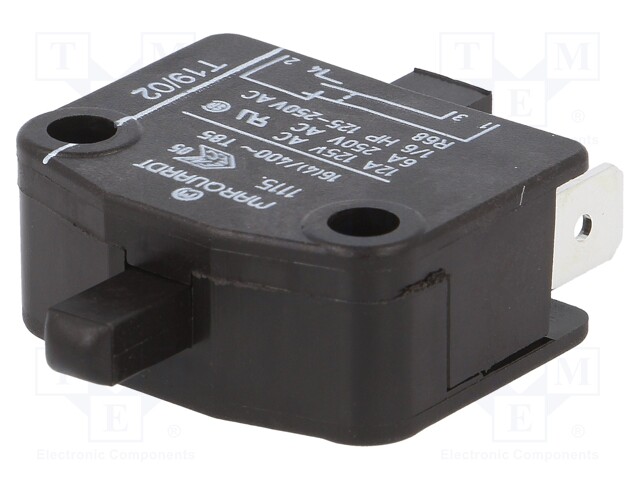

MICROSWITCH SNAP ACTION 16A/400VAC
€24,00
Out of stock
– Manufacturer: Marquardt
– Type of switch: microswitch SNAP ACTION
– Contacts configuration : SPST-NC
– AC contacts rating @R: 16A / 400V AC
– Max. contact resistance: 100mΩ
– Number of positions: 2
– Stable positions number: 1
– IP rating: IP40
– Leads: 6,3×0,8mm connectors
– Mechanical durability: 1000000 cycles
– Operating temperature: -10…85°C
– Electrical life: 10000 cycles
– Contact plating: silver plated
– Min. insulation resistance: 100MΩ
Additional information
– Gross weight: 9.29 g
- Manufacturer: Marquardt
- Type of switch: microswitch SNAP ACTION
- Contacts configuration : SPST-NC
- AC contacts rating @R: 16A / 400V AC
- Max. contact resistance: 100mΩ
- Number of positions: 2
- Stable positions number: 1
- IP rating: IP40
- Leads: 6,3x0,8mm connectors
- Mechanical durability: 1000000 cycles
- Operating temperature: -10...85°C
- Electrical life: 10000 cycles
- Contact plating: silver plated
- Min. insulation resistance: 100MΩ
Additional information
- Gross weight: 9.29 g
