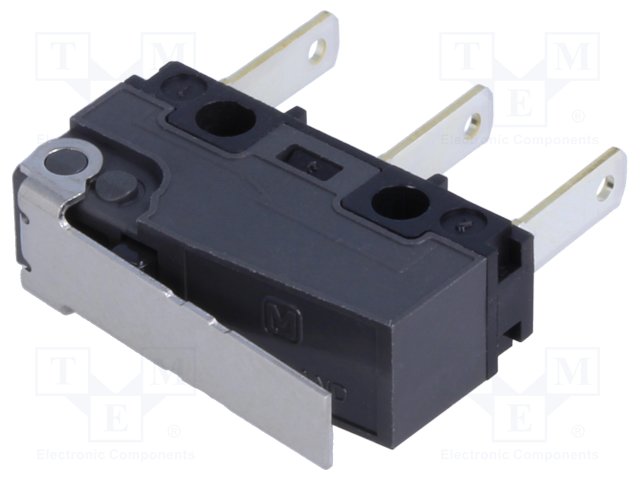

Microswitch SNAP ACTION 5A/250VAC 5A/30VDC
€3,50
Out of stock
Microswitch SNAP ACTION with lever SPDT 5A/250VAC 5A/30VDC
– Manufacturer PANASONIC
– Manufacturer series AVL3
– Type of switch microswitch SNAP ACTION
– Switches features with lever
– Contacts configuration SPDT
– AC contacts rating @R
at resistance load 5A / 250VAC
– AC contacts rating @L
at inductive load 3A / 250VAC
– DC contacts rating @R
at resistance load 5A / 30VDC
– DC contacts rating @L
at inductive load 3A / 30VDC
– Switching method
item in brackets is instantaneous ON-ON
– Number of positions 2
– Stable positions number 1-position
– IP rating IP40
– Leads 2,8×0,5mm connectors
– Body dimensions 19.8 x 6.4 x 10.1mm
– Mechanical durability 30000000cycles
– Operating temperature -25…85°C
– Operating Force 0.59N
– Electrical life 50000cycles
– Max. contact resistance: 50mΩ
– Min. insulation resistance 100MΩ
– Contact material AgNi
Additional information
– Gross weight: 2.13 g
