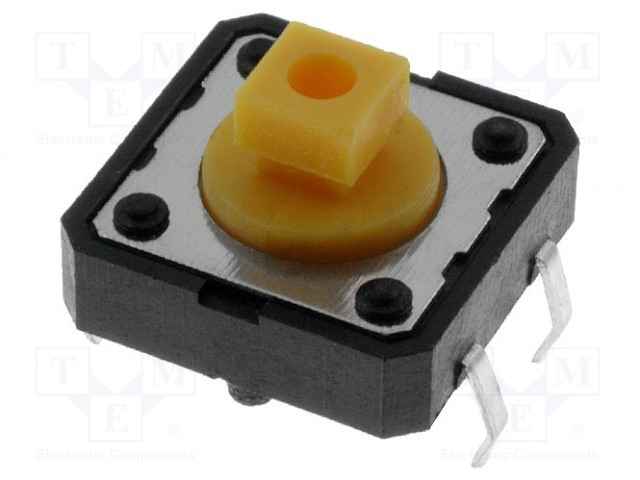

Microswitch TACT SPST-NO Pos: 2 0.05A/12VDC THT x2pcs
€0,70
In stock
– Manufacturer: NINIGI
– Type of switch: microswitch TACT
– Contacts configuration : SPST-NO
– Number of positions: 2
– DC contacts rating @R
at resistive load: 0.05A / 12V DC
– Mounting: THT
– Illumination: none
– Operating Force: 2.5N
– Body dimensions: 12x12mm
– Button height
measured from PCB: 7.3mm
– Switching method
item in brackets is instantaneous: OFF-ON
– Terminal pitch: 5×12.5mm
– Operating temperature: -25…70°C
– Button shape: square
– Actuator colour: yellow
– Button size: 3.8×3.8mm
– Leads: for PCB, straight
– Max. contact resistance: 50mΩ
– Min. insulation resistance: 100MΩ
– Soldering temperature: 250°C
– Stable positions number: 1
Additional information
– Gross weight: 0.82 g
