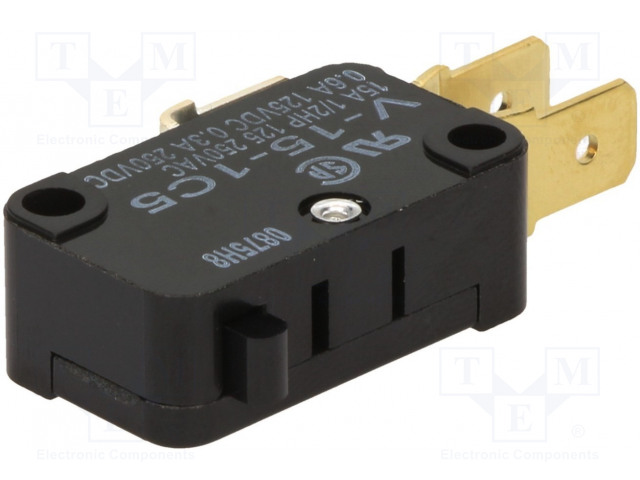

Microswitch without lever 15A
€4,50
Out of stock
– Manufacturer: OMRON OCB
– Manufacturer series: V
– Type of switch microswitch: SNAP ACTION
– Switches features: without lever
– Contacts configuration: SPDT
– AC contacts rating @R
at resistive load: 15A / 250V AC
– DC contacts rating @R
at resistive load: 0.6A / 125V DC
– Switching method
item in brackets is instantaneous: ON-ON
– Number of positions: 2
– Stable positions number: 1-position
– IP rating: IP40
– Leads: 6,35×0,8mm connectors
– Body dimensions: 27.8×10.3×15.9mm
– Mechanical durability: 50000000cycles
– Operating temperature: -25…80°C
– Operating Force: 1.96N
– Electrical life: 100000cycles
– Max. contact resistance: 15mΩ
Additional information
– Gross weight: 7.98 g
