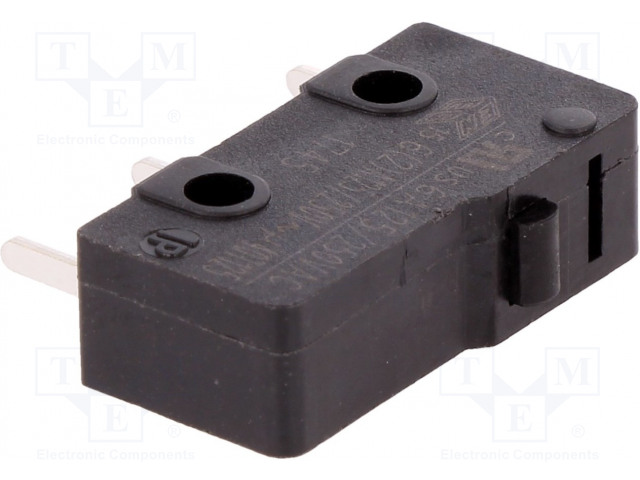

Microswitch without lever 6A
€3,50
Only 1 left in stock
– Manufacturer: CK
– Manufacturer series: LCA
– Type of switch: microswitch SNAP ACTION
– Switches features: without lever
– Contacts configuration: SPDT
– AC contacts rating @R
at resistive load: 6A / 250V AC
– Switching method
item in brackets is instantaneous: ON-ON
– Number of positions: 2
– Stable positions number: 1-position
– Leads: for PCB, straight
– Body dimensions: 19.8×6.4×10.6mm
– Mechanical durability: 300000cycles
– Operating temperature: -40…125°C
– Operating Force: 1.5N
– Contact plating: silver plated
– Contact material: copper
– Body material: polyester
Additional information
– Gross weight: 10 g
